ACM DC Motors

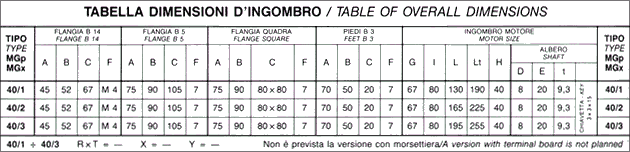

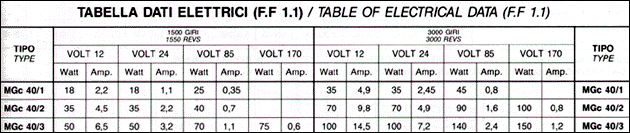

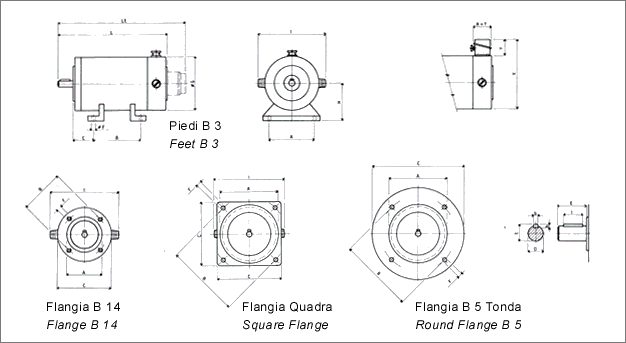

PERMANENT MAGNET MOTORS

  IP 23                                    Self ventilated motor                                          series MGp 40
  IP 54                                    Completely closed motor                                  series MGx 40

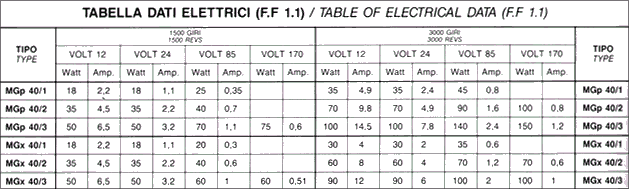

 Series 40

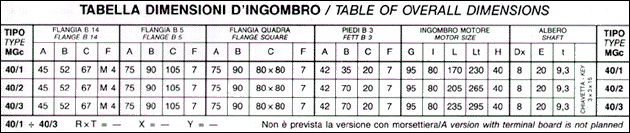

  IP 44                                Closed self ventilated motor                                series MGc 40








ACCESSORIES

ELECTROMAGNETIC BRAKES: All the motors of the MGp, MGx, MGc series can be provided with electromagnetic parking brakes produced by us, made for 24 V.d.c. power supply or another value on request, or can be prepared for the mounting of different brakes.
REDUCERS: On request we can mount e mechanical speed reducers with gears or handless screw, or can prepare a flange and shaft for coupling.
TACHOMETRIC DYNAMO: All the motors can be provided with l.10 tachometric dynamo keyed directly to the motor axis.
They can be prepared for coupling with various D.T., encoders, ecc

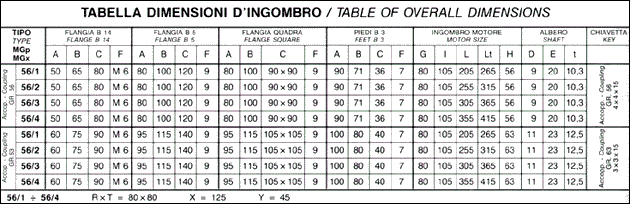

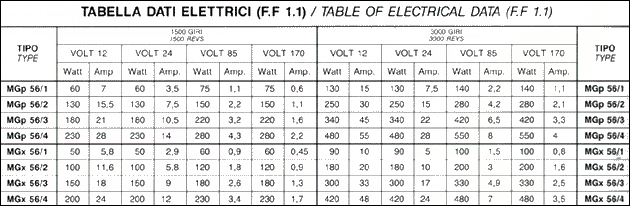

 PERMANENT MAGNET MOTORS

  IP 23                                    Self ventilated motor                                          series MGp 56
  IP 54                                    Completely closed motor                                  series MGx 56
 Series 56

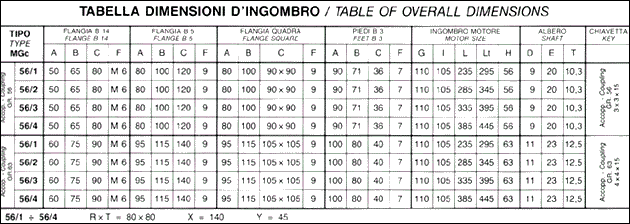

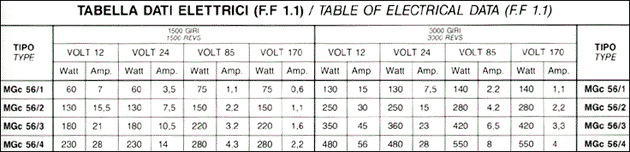

  IP 44                                Closed self ventilated motor                                series MGc 56

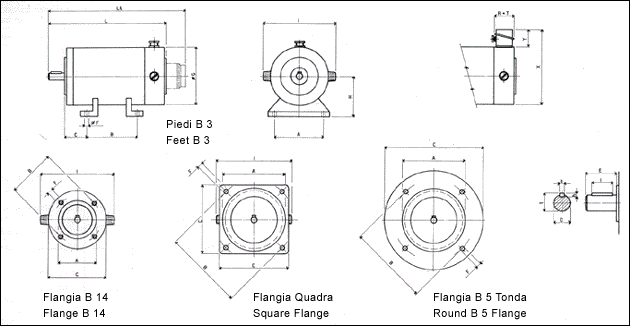

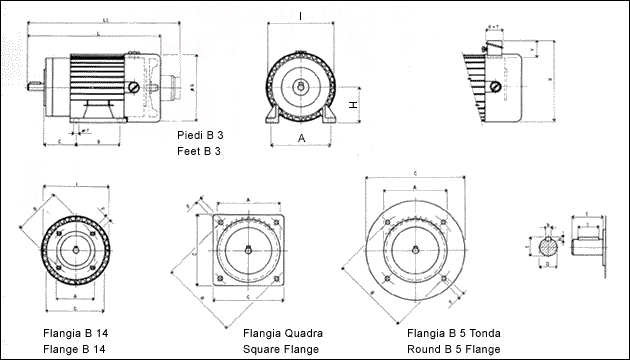

All the motors are equipped with the round flange and with cables leaving the union. On request we can construct motors with square flange and with shaft ends different from those in the table. All the motors may be equipped with terminal board or MIL standard union for the exit of the cables. All the motors may be prepared for the mounting of brake, encoder, etc., as well as tachometric dynamo.

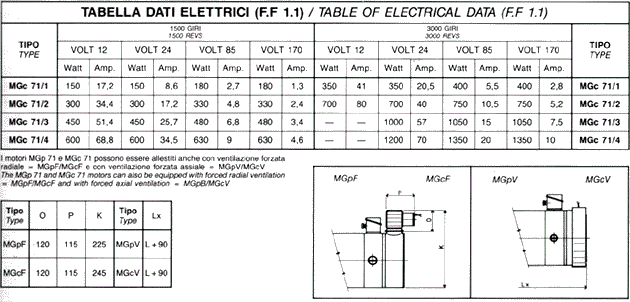

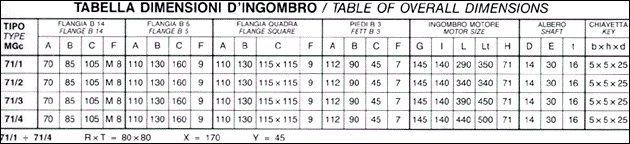

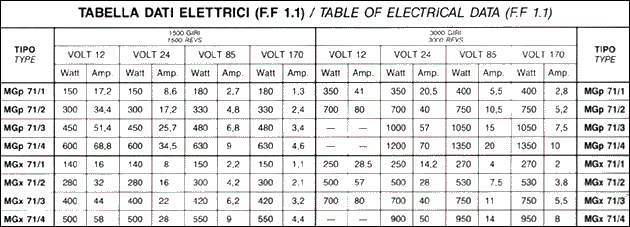

PERMANENT MAGNET MOTORS

  IP 23                                   Self ventilated motor                                           series MGp 71
  IP 54                                   Completely closed motor                                   series MGx 71

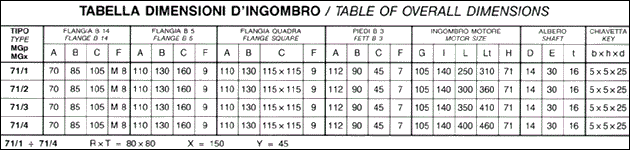

  Series 71







  IP 44                                Closed self ventilated motor                                series MGc 71

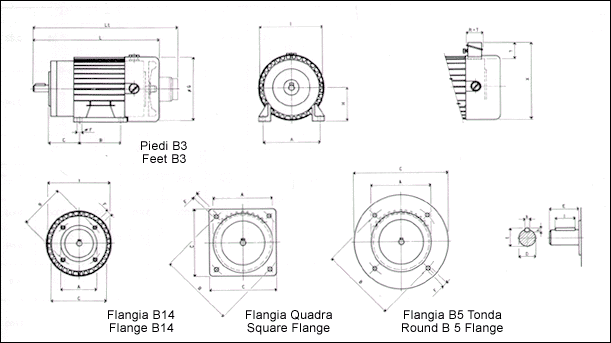

All the motors are equipped with the round flange and with cables leaving the union. On request we can construct motors with square flange and with shaft ends different from those in the table. All the motors may be equipped with terminal board or MIL standard union for the exit of the cables. All the motors may be prepared for the mounting of brake, encoder, etc., as well as tachometric dynamo.

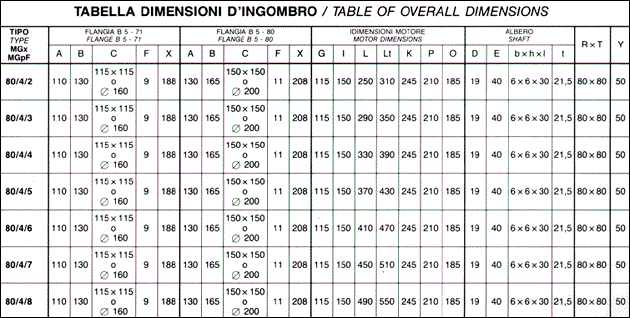

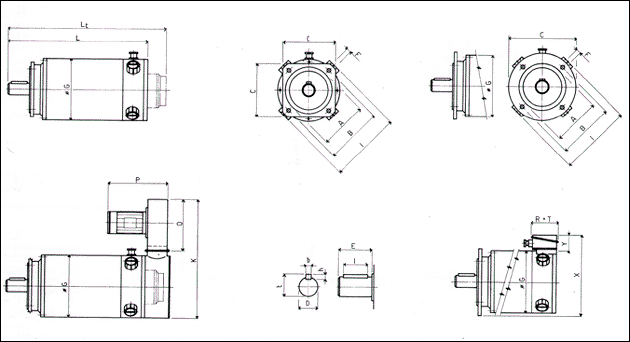

PERMANENT MAGNET MOTORS FOR AXIS CONTROL

  IP 54               Completely closed                                                                series MGx 80/4
  IP 22               protected forced ventilated motors                               series MGpF 80/4
 Series 80/4







All the motors for axis control are equipped with square flange and with cables leaving the union. On request we can construct motors with round flange and with shaft ends different from those in the table. All the motors may be equipped with terminal board or MIL standard union for the exit of the cables All the motors may be prepared for the mounting of brake, encoder, etc., as well as tachometric dynamo.




ACCESSORIES

BRAKE: All the motors can be equipped with disc parking brakes planned foe 24 V d.c. power supply.
TACHOMETRIC DYNAMO: All the motors can be supplied or equipped with tachometric dynamos IR 10 IR 20 I 20 I 60 BR 20 BR 60 IN 60 or REO 444. Currently the I 60 type is used (60 Volts, 1000 revs) keyed directly on the motor axis.
REDUCERS: On request we can mount a mechanical speed reducer with gears or endless screw, or can prepare a flange and shaft for coupling.
CLOSED SELF- VENTILATED VERSION SERIES MGc FOR CONTINUOUS OPERATION: The motors of the MGx series can be equipped in a closed version finned externally and self-ventilated.
 N.B.: All the permanent magnet motors are planned for supply with form factor 1.1.



PERMANENT MAGNET MOTORS FOR AXIS CONTROL

  IP 54               Completely closed                                                           series MGx   100/4
  IP 22               protected forced ventilated motors                           series MGpF  100/4

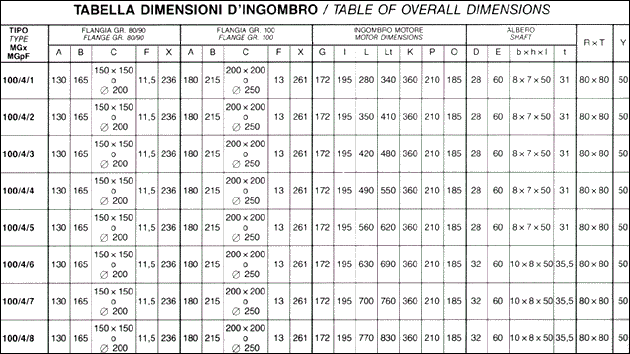

 Series 100/4







All the motors for axis control are equipped with square flange and with cables leaving the union. On request we can construct motors with round flange and with shaft ends different from those in the table. All the motors may be equipped with terminal board or MIL standard union for the exit of the cables All the motors may be prepared for the mounting of brake, encoder, etc., as well as tachometric dynamo.




ACCESSORIES

BRAKE: All the motors can be equipped with disc parking brakes planned foe 24 V d.c. power supply.
TACHOMETRIC DYNAMO: All the motors can be supplied or equipped with tachometric dynamos IR 10 IR 20 I 20 I 60 BR 20 BR 60 IN 60 or REO 444. Currently the I 60 type is used (60 Volts, 1000 revs) keyed directly on the motor axis.
REDUCERS: On request we can mount a mechanical speed reducer with gears or endless screw, or can prepare a flange and shaft for coupling.
CLOSED SELF- VENTILATED VERSION SERIES MGc FOR CONTINUOUS OPERATION: The motors of the MGx series can be equipped in a closed version finned externally and self-ventilated.
 N.B.: All the permanent magnet motors are planned for supply with form factor 1.1.



PERMANENT MAGNET MOTORS FOR AXIS CONTROL

  IP 54               Completely closed                                                              serie MGx   100/8
  IP 22                protected forced ventilated motors                             serie MGpF  100/8

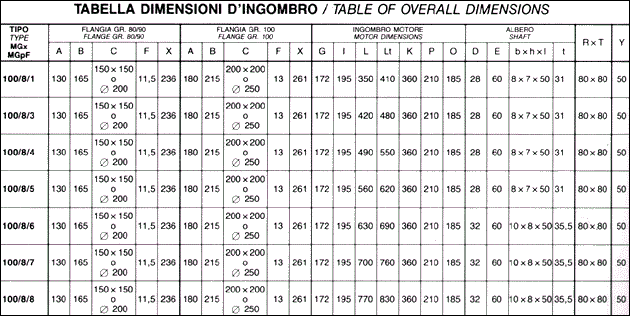

 Series 100/8







All the motors for axis control are equipped with square flange and with cables leaving the union. On request we can construct motors with round flange and with shaft ends different from those in the table. All the motors may be equipped with terminal board or MIL standard union for the exit of the cables All the motors may be prepared for the mounting of brake, encoder, etc., as well as tachometric dynamo.




ACCESSORIES

BRAKE: All the motors can be equipped with disc parking brakes planned foe 24 V d.c. power supply.
TACHOMETRIC DYNAMO: All the motors can be supplied or equipped with tachometric dynamos IR 10 IR 20 I 20 I 60 BR 20 BR 60 IN 60 or REO 444. Currently the I 60 type is used (60 Volts, 1000 revs) keyed directly on the motor axis.
REDUCERS: On request we can mount a mechanical speed reducer with gears or endless screw, or can prepare a flange and shaft for coupling.
CLOSED SELF- VENTILATED VERSION SERIES MGc FOR CONTINUOUS OPERATION: The motors of the MGx series can be equipped in a closed version finned externally and self-ventilated.
 N.B.: All the permanent magnet motors are planned for supply with form factor 1.1.



Reserved copyright for ACM
