General

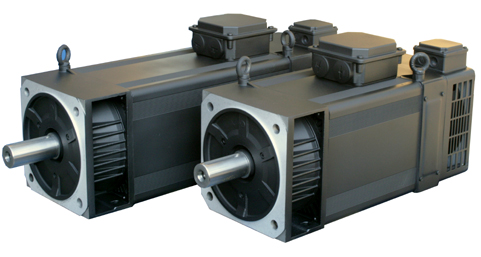

The VT series pectoral motors have been designed to offer the highest performance and the maximum flexibility when supplied by inverter. The high ratio between power and dimensions accompanied by an excellent dynamic performance make this type of motor suitable for many different types of applications. They are particularly used for industrial applications where are necessary high speed and performance.

Main features

• Winding coils insulation: class H according to CEI EN 60034-1
• Thermal dimensioning: class F according to CEI EN 60034-1
• Protection degree: IP54 for motors VT71-80-90-100, IP54 o IP23 for motors VT132 according CEI EN 60034-5
• Cooling: IC 416 (for motor IP54); IC 06 (for motor IP23) according to CEI EN 60034-6
• Balancing degree: G 2,5 according to ISO 1940 (1993) (half-key balancing for key shafts according to CEI 2-23) - Running position: anyone
• Flange: IM B35 (IM 2001) according to CEI EN 60034-7
• Lubricated for life ball bearings
• Thermal protection: thermal cut-out with normally closed contact. Operating temperature 140±5°C. (Maximum voltage 250Vac, maximum current 6Aac)
• Color: black RAL 9005
• Reference conditions: environment +40°C, max. height 1000m above sea level.
• Storage temperature: -20°C ÷ +70°C

Standard encoder (on request)

• Incremental encoder type SICK VFS60 (VFS60A-TGPZ0-S01) (1037013)1024 ppr, supply voltage 4-32 Vdc, Line driver (TTL)

Options

• Sine/Cosine encoder 1 Vpp - 1024 ppr
• Absolute encoder single-turn or multi-turn
• Resolver 2 poles, 7Vrms, transformation ratio 0.5
• Holding brake
• Shaft without key
• Roller bearings (VT100-VT132)
• Construction shape: IM B35
• 3 phase voltage fan for VT100 and VT132
• Oil seal (it is assembled only when the coupling is oil-bath lubricated)
• Motors with system electrical insulation certificate UL with extension to Canada (File E316823)
• Motors VT100 S/M/L/P and VT132 S/M/L/P with UL certifications with extension to Canada (File 247151).

•  Electrical Data



• VT 71-80-90(0,37 - 8 kW)
• VT 100 (2,6 - 15,5 kW)
• VT 132 IP54 (8 - 50 kW)
• VT 132 IP23  (11- 55 kW)

• Dimensions

• VT 71-80-90
• VT 100
• VT 132 IP54
• VT 132 IP23
