Commander SX AC Drive

IP66, NEMA 4X
AC Variable Speed Drive 0.37 kW to 7.5kW

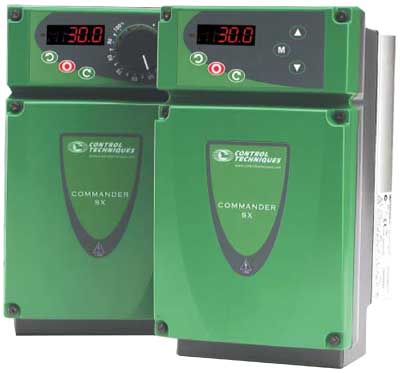

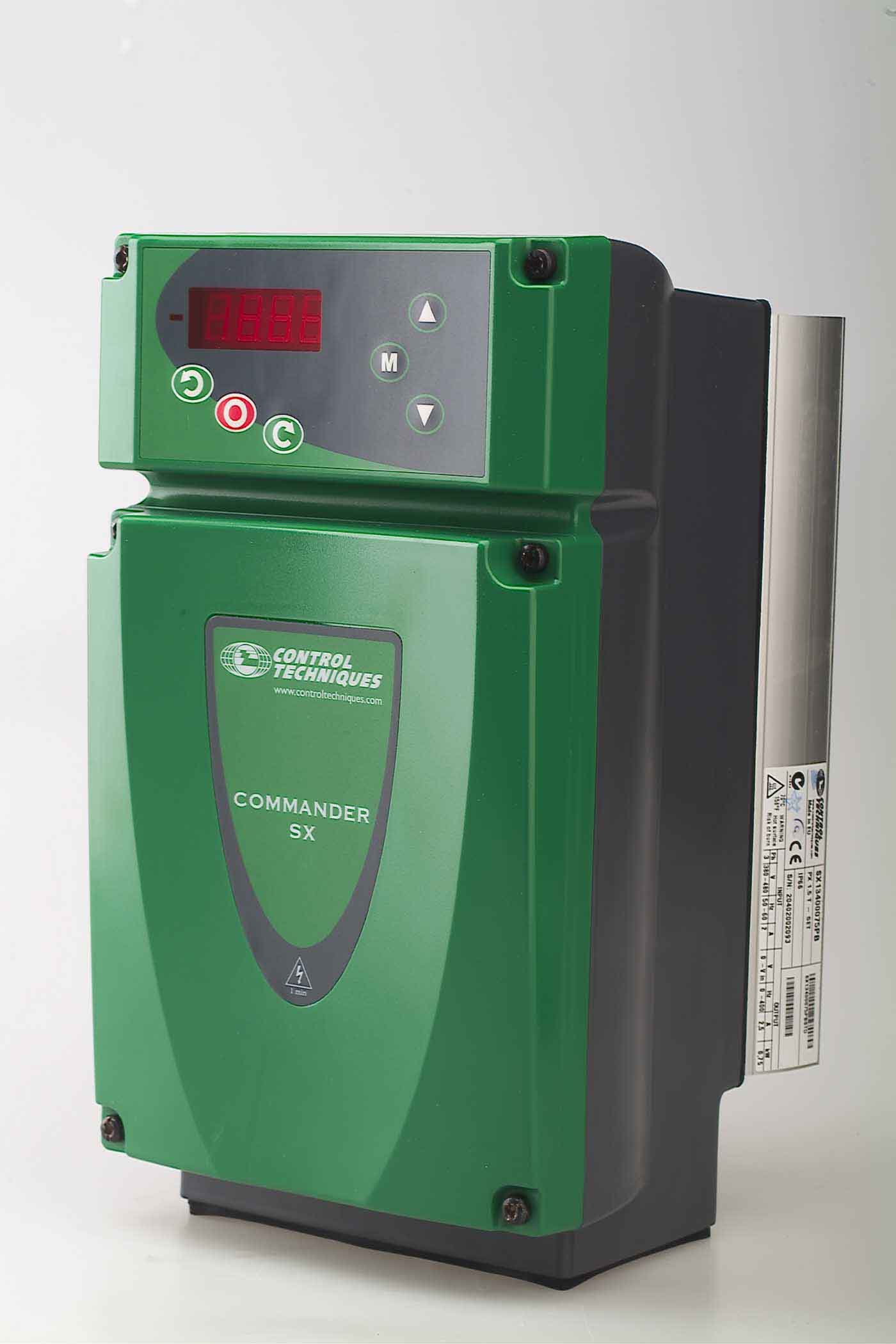

Commander SX



From 0.37 to 7.5 kW (0.5 to 10hp) the Commander SX AC Drive has been designed as a robust, IP66, NEMA 4X wall mounting AC drive for applications in food, drink, paper, textile and packaging machines where dirt, dust and other pollutants need to be regularly washed away.

Why Commander SX ?

  • IP66, NEMA 4X enclosed drive - no need for separate cabinet.
  • Designed for ‘direct to wall’ or ‘next-to-motor’ mounting -
    avoiding cabling, cabinet and installation costs.
  • Easy setup and commissioning - the first 10 parameters
    cover 80% of applications.
  • More than 10 common preset drive applications.
  • Surface and corners designed to maximize
    wash-down effectiveness.
  • Integral EMC filter (to generic and drive standards) for units up to
    4 kW (5hp) - IP66 EMC filters, from 5.5 kW (7.5hp) as option.

IP66 NEMA 4X

  • For tough, wet and dusty environments.
  • Designed for factory wash-down with pressure hose, and detergents.
  • Wall or machine mounting - no extra cabinets required.

  • Robust industrial housing with simple speed control interface
    - no drive installation specialists required.
  • Industrial standard EN954-1 categories 2 and 3 achieved
    through addition of PX-Secure option

Environment
IP66 NEMA 4X rating, for mounting in close proximity to the motor and application.
Ambient temperature 40 ºC (104ºF) without derating. Up to 50 ºC operation with a maximum derating of only one motor size.
Removable gland plate for easy termination and removal of control and motor cables.
Complies with EN954-1 Cat 3 with PX-Secure option.
EMC cable gland option for shielded cable management.
Electromagnetic Immunity complies with EN61800-3 (Drive standard) and EN61000-6-2 (generic standard).
Electromagnetic Emissions complies with EN61800-3 (Drive standard - 1st and 2nd environment) with integral EMC filter.
Complies with EN61000-6-3 and EN61000-6-4 (Generic standard) with integral EMC filter.
Earth leakage current less than 3 mA with integral EMC
filter in circuit.
European Hygienic Engineering and Design Group EHEDG and FDA hygienic recommendations have been adopted for the food industry:
- No paint.
- Anodized Aluminium heat sink.
- Polycarbonate covers.
- All slopes > 3 degrees incline.
- Roughness < 0.8 microns.
- No zones where liquids can accumulate.



Control
Open loop vector control.
V/F control.
Closed loop vector with PX-Encoder option.
Speed reference input 0-10 V, 0-20 mA, 4-20 mA.
5 digital inputs. Enable, Run forward, Run reverse, Jog, local / remote select.
Switching frequency 3-11 kHz with 4 .5kHz as default.
Acceleration and Deceleration ramps (linear and S-type).
Serial communication as standard - Modbus RTU RS485 via RJ45 connector.
DC injection braking as standard.
Integral dynamic braking transistor and resistor.
PID Controller.



LISTED

SX Selection

Model Reference Frame Size Supply Voltage & Motor Power Rated Voltage (kW) (hp) 100%Output Current 150% Overload Current for 60s

SX13200037XX

1

200 to 240V
± 10%

0.37

0.5

2.5

3.7

SX13200055X

0.55

0.75

3.5

5.2

SX13200075XX

0.75

1.0

4.5

6.7

SX23200110XX

2

1.1

1.5 6.0 9.0

SX23200150XX

1.5

2.0

8.0

12.0

SX23200220XX

2.2

3.0

10.0

15.0

SX33200300X 3 3.0 4.0 14.0 21.0

SX33200400XX

4.0

5.0

16.5

24.8

SX13400075XX

1

380 to 480V
± 10%

0.75

1.0

2.5

3.7

SX13400110X

1.1

1.5

3.5

5.2

SX13400150XX

1.5

2.0

4.5

6.7

SX23400220XX

2

2.2

3.0 6.0 9.0

SX23400300XX

3.0

4.0

8.0

12.0

SX23400400XX

4.0

5.0

10.0

15.0

SX33400550XX 3 5.5 7.5 14.0 21.0

SX33400750XX

7.5

10

16.5

24.8



Commander SX AC Drive
SX
2
3
4
00075
XX

PB - PT - DV
kW rating
Voltage (400V)
3 phase input
frame size
family name

PB - Standard version
PT - Potentiometer version
DV - Display only (consult factory)

Note: The PT and DV versions require PX-LCD or SXSoft to commission the drive.

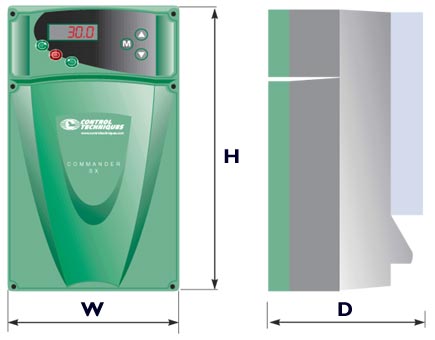

Dimension in (mm)

Frame Size

H W D
mm in mm in mm in
1 330 12.99 180 7.08 189 7.44
2 330 12.99 180 7.08 223 8.78
3 330 12.99 281 11.06 233 9.17

H = Height including mounting brackets
