- Fully digitized 3AC servo controller

Main features

Series   CDS 004 ...CDS 048

Mains supply voltage: 3AC 230V ... 480V
Output frequency: 0 Hz ... 670 Hz
Rated current: 4 A ... 60 A
Overload 1 s: 100 %
Overload 30 s: 50 %
Motors: AC-Asynchronous,
             AC-Synchronous, DC-Servo,
             DC-Spindle incl. field weakening

Control structures available

  • Speed control with/without resolver
  • Torque control with/without resolver
  • Frequency control
  • Integration of higher level control
    structures, e.g. position control

Feedback systems
Two sensor inputs for

  • Resolver, all makes
  • Sine encoders, with or without
    commutation track (Heidenhain,
    Stegmann, Tamagawa)
  • Incremental encoders, all makes
  • EnDat supported

Powerful software features

  • Support and capture are standard
  • Units can be synchronized via 8 kHz
    phased-locked-loop and virtual
  • Multiple axis systems (Communicate
    via Dual-Port-RAM)
  • Standard motor data parameters
    set ex works
  • SPS- and CNC- functionality
    can be integrated (Option)
  • 15 different parameter sets are
    available (Option)
  • Open application environment for
    programming in C++ (Option)
  • Customer-specific additional
    functions (Option)

Comprehensive test and diagnostic

  • Accessible at front side:
    -  LED for status display
    -  Measure points
  • Extended functions via PC
    and Handling Software
Option for PLC and/or CNC
  • Industrial PC could be integrated
    into the housing of digiSTAR
  • PC-based Software for PLC and/or
    movement control
  • Integrated machine control for
    lathes (FOCUS-T) and
    milling machines (FOCUS-M)
  • Customer specific application
    and user interface could be made
    with standard programming tools

Connection to Automation systems via

  • Fieldbus, e.g. CAN, Sercos, Profibus
  • Serial interface RS232, RS485
  • ParaBus: Low-price coupling for
    multi-AX drive systems

Inputs and outputs

  • 1 analogue reference input,
    +/- 10 V, 12 Bit or 16 Bit
    (Second input optional)
  • 12 programmable digital inputs
    for control signals. 2 of which
    are differential
  • 8 programmable short-circuit
    protected digital outputs
  • 1 programmable short-circuit
    protected analogue output
    +/- 10 V, 12 Bit

Special hardware features

  • Integrated brake chopper
  • Integrated brake resistor up to
    CDS 060 (Terminals for external
    high-power resistor optional)
  • Integrated mains filter (Option)
    and integrated output filter
  • Easy installation of signal, mains and
    motor cables using connector plugs
    (For big units: Fixed terminals)
  • Terminal adapters for compatibility
    to digiVEC series (Option)
  • Personality Module (Option)
  • Keyboard and display (Option)
  • Internal socket for extension modules
    with PC/104 standard bus
  • PC-Module for DOS / Windows
    can be integrated (Option)
  • Safe disable function independent
    from microprocessor (Option)

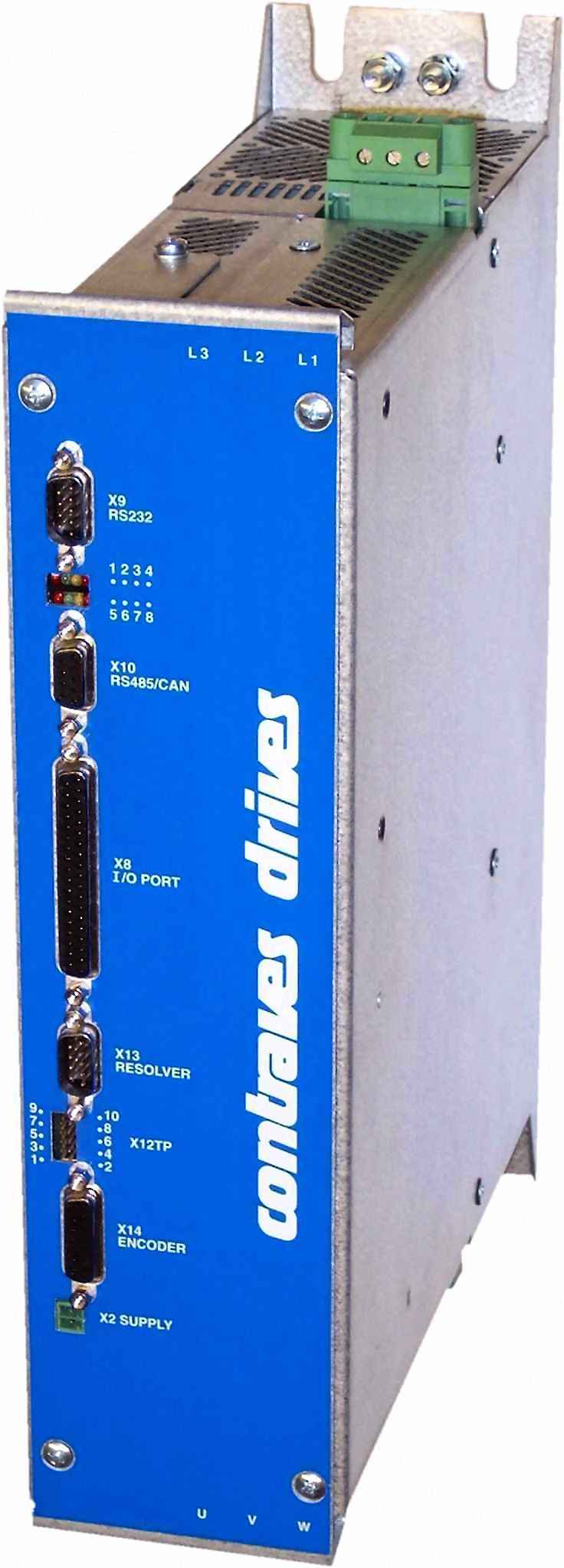

Photo: Servo inverter digiSTAR
