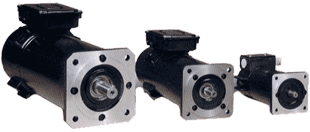

DC current servo motor with permanent magnet

MP Series

General

The DC servomotors with permanent magnets MP series are produce in different mechanical configuration, different nominal speed and different main voltage. They permit to obtain high continues torque and high dynamics. Thanks to specific construction they permit to obtain very uniform rotation with an error less to 1 or 2 rpm.

Main Features

  • Winding coils insulation: class F according CEI EN 60034-1
  • Thermal dimensioning: class F according CEI EN 60034-1
  • Protection degree: IP44 according CEI EN 60034-5
  • Cooling: IC 410 (per motor IP54) second CEI EN 60034-6
  • Construction shape: IM B5 or IM B14 according CEI EN 60034-7
  • Ferrite magnets

Options

MP


Electrical Data Dimensions


Reserved copyright for Brusatori.
