EN-FM Series
1Nm to 15Nm Digital Servo Drive



Overview

The En-Series drives are stand-alone, fully digital brushless servo drives designed and built to reliably provide high performance and flexibility without sacrificing ease of use.
Whether the drives are utilized in base drive only applications or with a closed loop controller, setup can be achieved in just minutes with no-charge PowerTools software. The use of a State-Space algorithm makes tuning very simple and forgiving. The drives are designed to operate with up to a 10 :1 inertia mismatch right out of the box. Higher (50 :1 and more) inertial mismatches are possible with two simple parameter settings.

EN Base Drive Operation
The base EN drive can be easily controlled with single and multi-axis controllers, PLCs and host controllers for medium power applications. The analog torque or velocity modes can be used with classic position controllers using analog outputs and encoder inputs. The pulse mode is ideal for use with low-cost PLC stepper controllers.

FM Control Modules
FM control modules provide EN drives with "snap-on" functionality for Indexing (FM-2), Programming (FM-3) and Advanced Programming (FM-4). This modular approach allows users to choose the level of advanced machine control they need, based on application parameters.



  • 90 to 264 VAC 1Ø input power 68 lb-in cont. torque, 3Ø up to 132 lb-in cont. torque
  • FM modules for position control and advanced communications
  • Easy to install, set up and operation
    • Compact, space saving design
    • Pluggable connectors, Standard D-Shell and Screw Terminals
    • State-Space Observer Control, which allows 10-1 inertia mismatch out of the box and 50-1 with tuning
    • Free PowerTools software and upgrades
  • Programmable, optically-isolated I/O
  • Internal registration capability with provision for external shunt
  • RS-232/485 serial communication interface using Modbus protocol
  • 14 segment status and diagnostic and display, time stamping of last 10 faults for easy troubleshooting
  • Field programmable flash memory firmware (upgrades are free)
  • Custom motor support for any servo motor with encoder feedback

FM-2 Indexing Module
The FM-2 module enhances EN drives by adding positioning capability including Jog, Home and index functions. This module also includes additional I/O with 8 digital inputs and 4 digital outputs.

FM-3 Programming Module
The FM-3 module transforms the EN into a fully programmable single axis motion controller with 8 additional digital inputs and 4 additional digital outputs.

FM-4 Advanced Programming Module
The FM-4 Advanced Programming module has all of the features of the FM-3 with added ability to create complex motion profiles for sophisticated applications. This module also includes high speed data capture, summation of multiple motion profiles, program multi-tasking plus a range of other parameters.

Easy Set-up
With Powertools™ interface software, no previous programming experience is required.

Power Tools FM Software
The Epsilon is very easy to commission and program using
PowerTools FM software. This Windows™-based programming environment makes extensive use of drag and drop editing, tabbed setup screens and hierarchical views.
PowerTools FM is used to select the operating mode and
motor, configure I/O, set velocity limits and torque levels, and monitor drive and I/O Status.



LISTED
147827

EN-Series Specifications & Dimensions

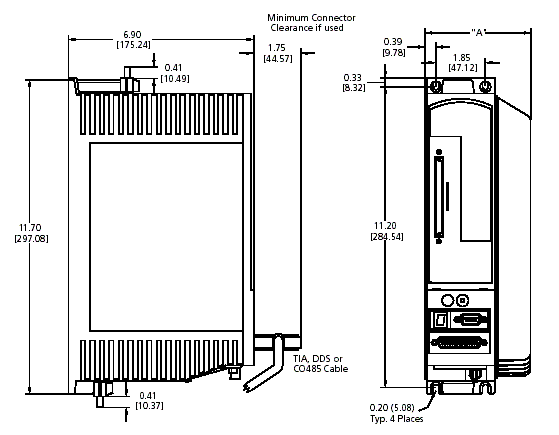

Dimensions

Click to enlarge

Dimensions

EN-Series Dimension A
204
74.4mm (2.93in)
208
87.1mm (3.43in)
214
99.8mm (3.93in)






Specification

AC Input Voltage
  EN-204: 1Ø
EN-208: 1Ø
EN-214: 3Ø (For 1Ø, derate output current by 20%)
AC Input Current:
  EN-204: 9.5Arms (140A for 8ms inrush)
EN-208: 19Arms (140A for 8ms inrush)
EN-214: 20Arms, 1Ø (140A for 5ms inrush)
EN-214: 14Arms, 3Ø (100A for 5ms inrush)
Output Continuous Current (RMS):
  EN-204: 4.5Arms
EN-208: 9Arms
EN-214: 13Arms (For 1Ø, derate by 20%)
Output Peak Current:
  EN-204: 9A
EN-208: 18A
EN-214: 26A (For 1Ø, derate by 20%)
Continuous Output Power:
  EN-204: 1.8kW
EN-208: 3.6kW
EN-214: 5.2kW
Switching Frequency
  20kHz
Logic Supply
  Internal
Alternate Logic Supply
  +127 to 373 VDC, 22W
Encoder Supply Output
  +5 VDC, 250 mA
Efficiency


93%

EN-Series Ratings

Drive
Model
Recommended Motor Model Cont. Stall Torque
(Nm)
Peak
Torque
(Nm)
Rated Power (W) Rated Speed
(rpm)
Ke
VRMS/
krpm
Kt Nm/
ARMS
EN-204 75EZA400CACAA 1.2 3.6 460 4000 44 0.71
EN-204 75EZB400CACAA 2.1 6.1 796 4000 44 0.71
EN-204 75EZC400CACAA 2.8 6.1 1005 4000 44 0.71
EN-208 75EZD400CACAA 3.6 10.8 1256 4000 44 0.71
EN-208 95EZB300CACAA 3.9 11.7 1130 3000 57 0.93
EN-208 95EZC300CACAA 5.5 15.0 1560 3000 57 0.93
EN-208 95EZD300CACAA 6.9 15.0 2000 3000 57 0.93
EN-214 95EZD300CACAA 6.9 20.7 2000 3000 57 0.93
EN-214 115EZC250CACAA 9.5 28.0 2134 2500 73.5 1.2
EN-214 115EZD250CACAA 12.0 28.0 2683 2500 73.5 1.2
EN-214 115EZE250CACAA 15.0 28.0 3167 2500 73.5 1.2
