Epsilon
Digital Servo Drive



Overview

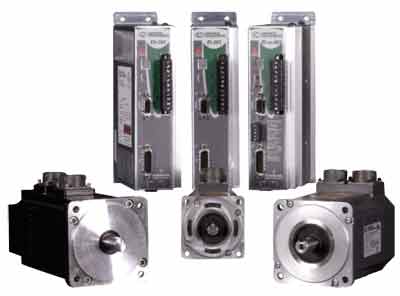

The Epsilon Series is the most compact digital servo drive in
the Control Techniques range. Designed to fit in 152mm
deep cabinets, with cables attached. Epsilon drives still possess the functionality and flexibility found in our other drives and servos.
There are three sizes of each Epsilon drive: 2 Amp, 3 Amp
and 5 Amp, with the largest drive delivering up to 6Nm
continuous torque. Each drive contains a 14-segment status
display, reset button, removable connectors and utilises
standard D type connectors.



  • 90 to 264 VAC 1 input power
  • Up to 6Nm continuous torque
  • Drive options: (in 2,3 or 5 Amp)
    Base Unit Eb
    Indexing Ei
    Indexing with DeviceNet Ei-DN
  • Easy install, setup and operation
    Compact, space saving design, 152mm panel depth including cables
    Pluggable connectors, standard D-type and screw terminals
    State-Space Observer Control, which allows 10-1 inertia mismatch out of the box, and 50-1 with tuning
    Free PowerTools Software, and upgrades
  • Programmable, optically isolated I/O
  • RS232/485 serial communication interface using Modbus protocol
  • 14-segment status and diagnostic display, time-stamping of last 10 faults for easy troubleshooting
  • Field programmable flash memory firmware (upgrades are free)
  • 24VDC auxiliary input for logic backup

The Epsilon is available as a base drive, the Epsilon Eb; or as a single-axis positioning, indexing drive, the Epsilon Ei.The
Epsilon Ei is also available with DeviceNet-Epsilon Ei-DN.


Power Tools FM Software
The Epsilon is very easy to commission and program using
PowerTools FM software. This Windows-based programming environment makes extensive use of drag and drop editing, tabbed setup screens and hierarchical views.
PowerTools FM is used to select the operating mode and
motor, configure I/O, set velocity limits and torque levels, and monitor drive and I/O Status.


LISTED






Epsilon Specifications & Dimensions

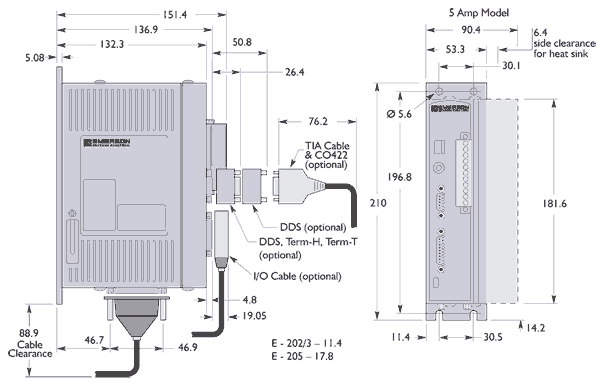

Dimensions

Click to enlarge





Ratings

Epsilon
Output
rms
A
Output
Peak (A)
4s
202
1.8
3.6
203
3.0
6.0
204
5.0
10



Power Requirements
AC Input Voltage
  1, 90 to 264 VAC, 47 - 63 Hz (240 VAC for rated performance)
Switching Frequency
  20 kHz
Logic Supply
  Internal
Auxiliary Logic Supply
  +18 to 30 VDC @ 0.5A
Encoder Supply Output
  +5 VDC, 250 mA
System Efficiency
  0.93
Cooling Method
  Epsilon 202-205: Convection
Regeneration
Internal Energy Absorption (115V)
  Epsilon 202/3: 41 Joules
  Epsilon 205: 113 Joules
Internal Energy Absorption (230V)
  Epsilon 202/3: 18 Joules
  Epsilon 205: 48 Joules
External:
  Connection to RSR-2 with external resistor, 20 Ohm min, 15 Arms, 2kW
Drive Control Inputs
Analog:
  +/-10VDC, 14 bit, 100kOhm,
  Differential Analog Max. Input Rating:
  Differential +/-14 VDC, Each Input with
  Reference to Analog Ground +/-14VDC
Digital:
  +10 to 30 VDC, 2.8kOhm, Sourcing, Optically Isolated
Pulse:
  Differential Rs-422, 2MHz/Channel, 50% Duty Cycle
Single Ended:
  TTL Schmitt Trigger 1MHz/Channel, 50% 50% Duty Cycle
Motor Over temperature:
  0 to +5VDC, 10kOhm, single ended
 Drive Control Outputs
Analog:
  +/-10VDC, 10 bit, Single-ended 20mA
Digital:
  +10 to 30VDC, 150mA
Sourcing
  Optically Isolated
Pulse:
  Differential RS-422 and TTL compatible, 20mA/Channel Sink or Source
I/O Supply:
  +10 to 30 VDC
Environmental
Rated Ambient Temperature:
  0 to 40C for rated performance
Maximum Ambient Temperature:
  0 to 50C with power derating of 3.5%/ 1C above 40C
Rated Altitude:
  1000m
Maximum Altitude:
  For altitudes > 1000m derate output by 1%/ 100m
Vibration:
  10 to 2000 Hz @ 2g
Humidity:
  10 to 95% non-condensing
Storage Temperature:
  -25 to 75C
Ingress Protection:
  IP20
Serial Interface
  RS232/RS485 Modbus RTU w/ Internal RS232 to RS485 Converter
Drive Weight
  Epsilon 202/3 1.5 kg
  Epsilon 205 1.7 kg
DeviceNet (Optional)
Power Consumption:
  25mA
Baud Rates:
  125, 250 and 500kpsNode
Addresses:
  00-63 Messaging: Explicit and Polled I/O
