Focus I DC Drive Control

The Focus Drives Family are currently Discontinued by the Manufacturer, but are still available at Microcon. Call (905) 602-4770 for more information and support.
Focus 1 (1/4 to 2 HP) Enclosed

The Focus series of analog DC controls has proven itself for many years as one of the most reliable, rugged and dependable controls in its class. With over 100,000 units installed  worldwide, the number of satisfied customers continues to grow.

We stand behind every Focus 1 with a 2-year warranty. Two models (chassis and enclosed) cover the 1/4 to 2 horsepower range, with 1/4 to 1 HP for 90 VDC armatures and 1/2 to 2 HP for 180 VDC armatures.













Standard Features:

* Maximum versatility using jumper programming - one enclosed and one chassis mount controller for a wide variety of applications from 1/4 to 2 horsepower.

* NEMA 1 TENV enclosure or chassis mount - options kit available for converting NEMA 1 enclosure to NEMA 4/12.

* Solid state full wave design using generously rated power semiconductors for maximum reliability and long life.

* Integrated circuitry using state of the art electronics for fast, accurate response.

* Both AC lines fused for maximum semiconductor protection in case of short circuit.

* Massive heat sink provides cooler running temperature inside enclosure for longer component life - located up front for easy cleaning.

* 1 Amp, full wave design field supply.

* Continuous full rated torque over a 30:1 speed range.

* Control relay to prevent restart of drive after interruption of AC power.

* Run LED indicator light.

* Standard internal adjustments - maximum and minimum speed, IR compensation.

* Double pole AC power disconnected switch and start/stop selector switch (enclosed unit only).

* Loose speed pot furnished with chassis control.

* Controlled acceleration for soft starts, 2-3 seconds.

* Speed regulation:±1 % of maximum speed due to Load variations using armature voltage feedback with IR compensation.

* Designed for use with 50 or 60 Hertz AC power.

* Selectable current limit for matching control to motor being used provides smooth acceleration of high inertia loads.

* May be converted to a torque control by changing jumpers - perfect for surface winders.

* Transient voltage protection using Varistor.

* Zener regulated control power supply provides compensation for line voltage fluctuation.

* UL listed and CSA approved.

* Option kits available for easy field installation:

    "M" Contactor

    Magnetic Reversing

    Dynamic Braking

    NEMA 4/12 Conversion Kit










120 / 240 VAC
Motor HP Input Output Model Catalog
Number
AC
Volts
Amps DC Volts Amps
Arm Field Arm Field
0.25 to 1 120 14 90 100 10 1 Chassis 2400-8001W
0.50 to 2 240 14 180 200 10 1
0.25 to 1 120 14 90 100 10 1 NEMA 1 2400-8000W
0.50 to 2 240 14 180 200 10 1

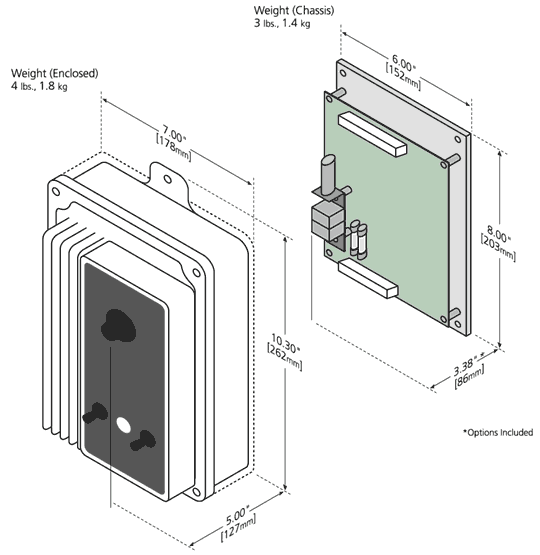

Focus 3 Dimensions - Non regen

Adjustment

Maximum Speed

70 to 115% of rated speed
Minimum Speed 0 to 30% of maximum speed
IR Compensation 0 to 20% of rated voltage
Current Limit Fixed 150% of selected range
Acceleration/Deceleration Fixed 2 to 3 seconds

Operator Functions
Speed Adjustment Standard
Power On / Off Standard (Enclosed)
Start/Stop Standard (Enclosed)
Forward/Reverse Option Kit

Customer Selectable
Rated Input Voltage 120 or 240 VAC
Control Mode Speed or Torque
Output Current Hi / Med / Low
Armature Voltage Feedback Hi (180) / Lo (90) / VDC

Control

Logic Control Power

24 VDC

Speed Potentiometer

5k Ohms, 2 Watts, single Turn
Input Signal Requirement 0 to +10 VDC, 44k Ohms

Speed Regulation
(95% load regulation)

1% of maximum speed with IR compensation.

Drive Operating Conditions
NEMA 1 Standard (Enclosed)
N/A (Chassis)
NEMA 4/12 Option Kit (Enclosed)
N/A (Chassis)
Altitude 1000m (3,300 ft)
Ambient Temperature 0 to 40°C (32 to 104°F) (Enclosed)
0 to 55°C (32 to 131°F) (Chassis)
Minimum Enclosure Size N/A (Enclosed)
24" x 20" x 6" (Chassis)
Rated Input Voltage 120 / 240 VAC ±10%
Rated Frequency 48 to 62Hz
Overload Capacity 150% of selected rating

Efficiency
Efficiency: Controller (min) 98%
Drive (typical) 86%

Option Kits
"M" Contactor Yes
Reversing Contactor Yes
Dynamic Braking Yes
NEMA 4/12 Yes (Enclosed)
N/A (Chassis)
Remote Speed Meters Yes
Ten-Turn Potentiometer Yes
