Focus III DC Drive - FOCUS 3 DC Drive

The Focus Drives Family are currently Discontinued by the Manufacturer, but are still available at Microcon. Call (905) 602-4770 for more information and support.

Focus 3 (1/4 to 5 HP)

The Focus 3 is a single-phase analog drive for DC
motors with power ranges from 1/4 to 5 HP. Years of proven engineering design matched with surface mount technology make this newest Focus product rugged and reliable.

Customer feedback guided the development of the Focus 3. Many features that were typically available only as options are now standard, expanding its versatility and simplifying installation.

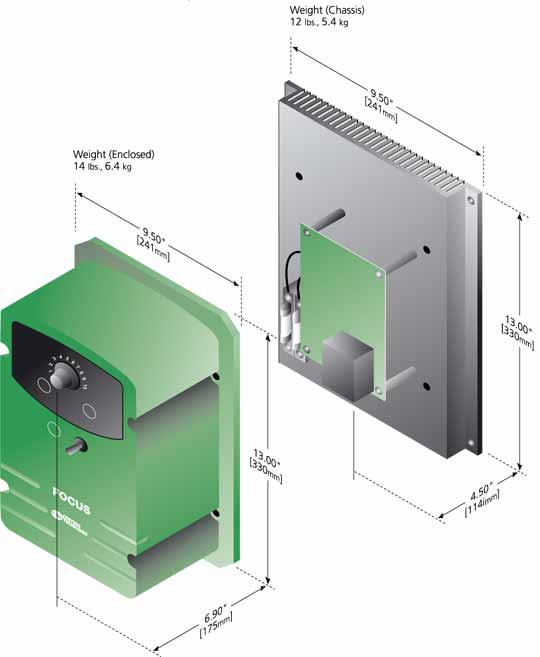

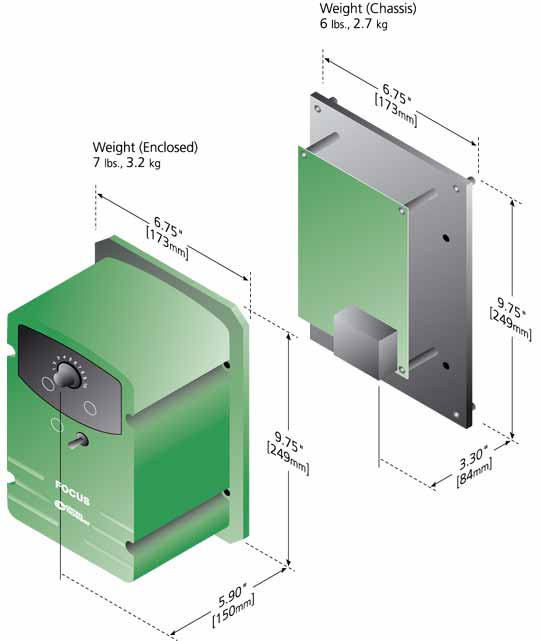

Focus 3 provides flexibility. You can stock the complete product line with the four chassis units (two regenerative and two non-regenerative) and two enclosure kits

* Analog DC Drive

* 1/4 to 5 HP, 1 phase, 120 / 240 VAC

* Non-Regen and Regen Models

* Isolated control circuit (Regen)

* NEMA 4/12 or Chassis

* Tachometer or armature feedback

* Complete Motor Solutions

Non-Regenerative
Motor HP	Input		Output				Model	Catalog Number
	AC Volts	Amps	DC Volts		Amps
	AC Volts	Amps	Arm	Field	Arm	Field
0.25 to 1	120	14	90	100	10	1	Chassis	F3N2C
0.50 to 2	240	14	180	200	10	1	Chassis	F3N2C
0.25 to 1	120	14	90	100	10	1	NEMA 4/12	F3N2E
0.50 to 2	240	14	180	200	10	1	NEMA 4/12	F3N2E
3 to 5	240	35	180	200	25	1	Chassis	F3N5C
3 to 5	240	35	180	200	25	1	NEMA 4/12	F3N5E

Regenerative
Motor HP	Input		Output				Model	Catalog Number
	AC Volts	Amps	DC Volts		Amps
	AC Volts	Amps	Arm	Field	Arm	Field
0.25 to 1	120	16	90	100	10	1	Chassis	F3R2C
0.50 to 2	240	16	180	200	10	1	Chassis	F3R2C
0.25 to 1	120	16	90	100	10	1	NEMA 4/12	F3R2E
0.50 to 2	240	16	180	200	10	1	NEMA 4/12	F3R2E
3 to 5	240	40	180	200	25	1	Chassis	F3R5C
3 to 5	240	40	180	200	25	1	NEMA 4/12	F3R5E

	Adjustment
Maximum Speed	80 to 120% of rated speed
Minimum Speed	0 to 30% of maximum speed
IR Compensation	0 to 20% of rated voltage
Current Limit	o to 150% of selected range
Acceleration	0.3 to 20 seconds
Deceleration	0.3 to 20 seconds
Jog Speed	0 to 30% of rated speed

	Operator Functions
Speed Adjustment	Standard
Start/Stop	Standard (Enclosed) Customer Supplied (Chassis)
Run/Log	Option Kit
Forward/Reverse (Regen Only)	Option Kit
Auto/Manual	Option Kit

	Customer Selectable
Rated Input Voltage	120 or 240 VAC
Control Mode	Speed or Torque
Output Current	Hi / Med / Low / Xlow
Armature Voltage Feedback	Hi (180) / Lo (90) / VDC
Tacho Feedback	Hi / Lo
Speed Feedback Selector	Armature / Tachometer
Line Frequency	50 / 60Hz

	Control
Logic Control Power	180 VAC
Speed Potentiometer	Input transient suppression
Speed Regulation (95% load change): Armature Voltage Feedback	1% of maximum speed with IR compensation. (does not include drift due to field)
Tachometer Feedback (i.e 5PY)	0.5% of base speed

	Drive Operating Conditions
NEMA 4/12 Enclosure	Standard (Enclosed) Option Kit (Chassis)
Altitude	1000m (3,300 ft)
Ambient Temperature	0 to 40°C (32 to 104°F) (Enclosed) 0 to 55°C (32 to 131°F) (Chassis)
Rated Input Voltage	120 / 240 VAC ±10%
Rated Frequency	48 to 62Hz
Overload Capacity	150% of selected rating
Efficiency: Controller (min)	98%
Drive (typical)	86%
