Midi / Maxi Maestro

Discontinued Series - Still Available

(Call Microcon for Stock Availability and or replacement)

DC Servo Drives 8 to 25 A
The Maestro range of dc brushed servo drives are manufactured to the latest surface mount specifications ensuring quality, reliability and above all a cost effective solution to low power dc servo applications. Performance matched to a range of permanent magnet dc servo
motors Matador. The Maestro delivers powerful, accurate motor control in diverse applications such as robotics, transfer lines, positioning, indexing.

The 20kHz switching frequency ensures silent operation and
the Maestro/Matador combination is characterised by the
accuracy of its speed and control loops. The Maestro range

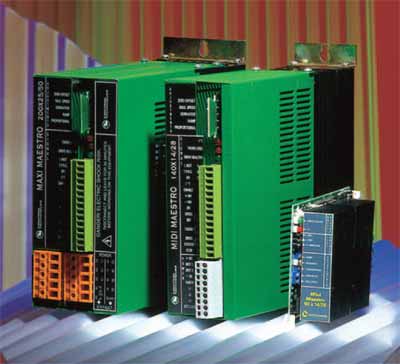

comes in three physical sizes, Mini, Midi and Maxi.

Modern PWM DC servo drive
3 model sizes
20 kHz switching frequency
Analogue technology
CE marked
Worldwide support
Midi Maestro
105 V AC input
Integral braking resistor
Analogue reference input: 10 V (10 kW input impedance)
Error amplifier temperature drift: 1.3 mV/C
Minimum Tacho signal at maximum speed: 5 V
Working temperate -10 to +50C

Midi Maestro
The process of modern electronic packaging technology allowed us to make a compact stand-alone package. This package offers an extremely high specification for single and multi-axis applications. The series of Midi Maestro drives consists of the Following models:
DCD 140* 8/16
DCD 140* 14/28


Drive ratings

Type

Nominal current

Peak current for 2 seconds

DCD140X8/16

8A

16A

DCD140X14/28

14A

28A

Power stage features
Supply voltage from main power distribution isolated through a line transformer with a 3 phase 105Vrms output.
Max voltage at the motor : Rectified supply voltage minus 8V
PWM working frequency : 18kHz
Internal braking unit : resistance 10 0hm, 200 watts
Minimum motor inductance without external choke : 2.0mH

General
Analogue reference input : +/- 10V (10 k/Ohm input impedance)
Error amplifier temperature drift :1.3m V/0C
Min. Tacho signal at maximum speed :5V
Working temperature : -10 to +50 deg C
Adjustments : (All on the customization board)
Full scale speed
Current limit
Ramp gradient
Dynamic gain
Derivative action
Ref. Speed offset compensation

Diagnostics
Red LED indicator when I2t is active
Red LED indicator for tacho loss
Green LED indicator for drive healthy
Control output for drive status
Logic output for I2t limit monitoring
Analogue output for motor current monitoring
Analogue output for requested current (TPRC) monitoring.

Maxi Maestro
150 V AC input
External braking resistor supplied
ADJUSTMENTS
(All on the customizations board)
Full scale speed
Current limit
Dynamic gain
Derivative action
Reference speed offset compensation
Ramp gradient
Maxi Maestro

The maxi maestro range is a high power version of the maestro range. The maxi maestro has an integrated fan. The series consists of one model:

DCD200X25/50

Ratings
Type Normal Current Peak Current for 2 seconds
DCD200X25/50 25A 50A

Power Stage Features

Supply Voltage from main power distribution line, through an isolated transformer with a 3 phase 150 Vrms output.
Max voltage at the motor : Rectified supply voltage minus 8V.
PWM Working frequency : 18kHz
Minimum motor inductance without external choke :3.0mH

General
Analogue speed reference input : +/-10V(10kOhm input impedance)
Error amplifier temperature drift : 1.3 V/C
Min tacho. signal at maximum speed : 5V
Working temperature : -10 to + 50 C
Adjustments : (all on the customization board)
Full scale speed
Current limit
Dynamic Gain
Derivative Action
Ref. speed offset compensation
Ramp gradient

Diagnostics
Red LED indicator when I2t is active
Red LED indicator for Tacho loss
Green LED indicator for drive healthy
Control output for drive status
Logic output for I2t limit monitoring
Analogue output for motor current monitoring
Analogue output for requested current (TPRC) monitoring.
