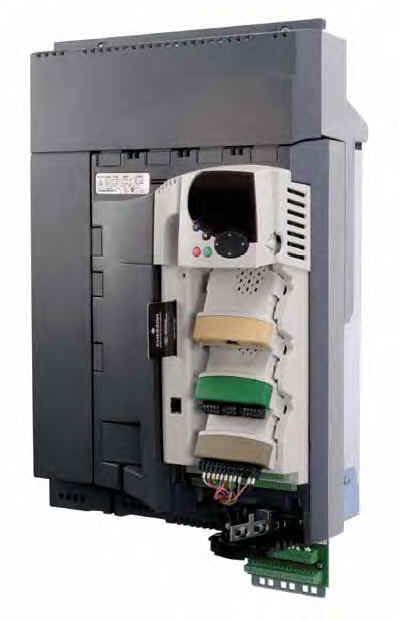

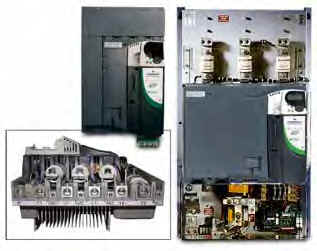

Quantum MP Non-Regenerative & Regenerative
208 - 480 VAC 3 phase DC Drive
|
Motor HP
|
Output Current Amps | Non-Regenerative | Regenerative | ||||||
| 230VAC 240VAC | 460VAC 500VAC | Armature | Field | Part Number | Weight (lbs) |
Dimensions
H X W X D (in)
|
Part Number | Weight (lbs) |
Dimensions
H X W X D (in) |
| 10 | 25 | 45 | 8 | QMP45A4 | 40 | 22.6 X 13.0 X 8.7 | QMP45A4R | 41 | 22.6 X 13.0 X 8.7 |
| 20 | 40 | 75 | QMP75A4 | QMP75A4R | |||||
| 40 | 75 | 155 | QMP155A4 | 46 | 22.6 X 13.0 X 9.8 | QMP155A4R | 47 | 22.6 X 13.0 X 9.8 | |
| 60 | 125 | 210 | QMP210A4 | QMP210A4R | |||||
| 100 | 200 | 350 | 20 | QMP350A4 | 139 | 35.0 X 20.3 X 12.9 | QMP350A4R | 153 | 35.0 X 20.3 X 12.9 |
| 100 | 225 | 400 | QMP400A4 | QMP400A4R | |||||
| 150 | 300 | 550 | QMP550A4 | 36.8 X 20.3 X 12.9 | QMP550A4R | 36.8 X 20.3 X 12.9 | |||
| 200 | 400 | 700 | QMP700A4 | 189 | 38.7 X 20.3 X 12.9 | QMP700A4R | 189 | 38.7 X 20.3 X 12.9 | |
HP provided for convenience. Always size drive based on motor Amps.
Options
|
DESCRIPTION
|
PART NUMBER |
| LED Keypad,7 digit LED data display, Size 1 - 9 | SM-KEYPAD |
| LCD Keypad, back-lit, multiple languages, on screen help, remote mountable | MP-KEYPAD |
| 8K Parameter cloning card. | SMARTCARD |
| 64K Parameter cloning card with additional data storage | SMARTCARD-64 |
External Field Regulators
 |
DESCRIPTION
|
PART NUMBER |
| 25A External Field Regulator. MP Drive to regulator cable sold separately | FXMP-25 | |
| Extends standard warranty to 5 Years on FXMP25 External Field Regulator | FXMP25WE | |
|
*****Note: Use Mentor MP for fields >25A |
||
|
|
|
Mentor MP & Quantum MP Solutions Modules
|
|
Description | Part Number |
| Inputs/Outputs | (6) DI @ 120vac OR (3) DI @ 240vac & (2) RELAYS | SM-I/O-120V |
| 24v Protected, (3) DI, (4) DI/DO, (2) Relay, (2) current AO | SM-I/O-24V | |
| (32) Assignable 24 VDC Digital Inputs/Outputs (Requires application programming) | SM-I/O-32 | |
| (1) AI, (1) AO, (3) DI, (1)relay, (1) frequency in | SM-I/O-LITE | |
| I/O Lite with real time clock | SM-I/O-TIMER | |
| (2) AI, (1) AO, (3 DI, (3) DI/DO, (2) relays | SM-I/O-PLUS | |
| Isolated I/O to Namur NE37 chemical specification | SM-I/O-PELV | |
| Communications | CANopen Solutions Module | SM-CANOPEN |
| DeviceNet Solutions Module | SM-DEVICENET | |
| EtherCat Solutions Module | SM-ETHERCAT | |
| Ethernet/IP and Modbus TCP/IP Solutions Module, Do not use with SM-Keypad-Plus | SM-ETHERNET | |
| Interbus-S Solutions Module | SM-INTERNET | |
| Profibus-DP Solutions Module | SM-PROFIBUS-DP | |
| Profinet Solutions Module | SM-PROFINET | |
| Feedback | Encoder Plus Solutions Module, Provides an additional incremental encoder feedback port | SM-ENCODER-PLUS |
| SM-Encoder Output Plus - provides SM-Encoder-Plus functionality and buffered encoder outputs with power supply (5, 8 & 15V) | SM-ENCODER-OUT | |
| SM-Universal-Encoder-Plus Solutions Module, provides an additional incremental or absolute encoder feedback port and simulated encoder output. | SM-UNI-ENCODER | |
| Applications | SM-Applications-lite-V2 Solutions Module, programmable with SyPTPro or SyPT Lite | SM-APPS-LITE-V2 |
| SM-Applications-Plus Solutions Module, programmable with SyPTPro via CTNet or RS485, 2 digital inputs and 2 digital outputs for high speed I/O. Use for new applications. | SM-APPS-PLUS | |
| High Speed motion and registration module. Programmable with SyPTPro, includes two high speed position capture inputs. | SM-REGISTER |
Quantum MP Extended Warranties
|
Description |
Non-Regenerative Order Codes |
Regenerative Order Codes |
|
Standard two year warranty to five years. Warranty order codes match the drive order code plus the suffix WE representing Warranty Extended. |
QMP25AWE |
QMP25ARWE |
|
QMP45AWE |
QMP45ARWE |
|
|
QMP75AWE |
QMP75ARWE |
|
|
QMP155AWE |
QMP155ARWE |
|
|
QMP210AWE |
QMP210ARWE |
|
|
QMP350A4WE |
QMP350A4RWE |
|
|
QMP420A4WE |
QMP420A4RWE |
|
|
QMP550A4WE |
QMP550A4RWE |
|
|
QMP700A4WE |
QMP700A4RWE |
