Unidrive SP AC Drive

Discontinued Series

(Call Microcon for Stock Availability and or replacement)

The AC Variable Speed Drive Solution Platform
0.75 kW to 30 kW

Energy Saving Technology

What is  ?
From the simplest to the most complex AC drive application;
Unidrive is a truly scalable Solutions Platform.
Your requirements can be matched by Unidrive and its
options to maximize your productivity.

What makes Unidrive
The Benchmark?

Unidrive is so flexible it can be personalized to
your requirements, to lower your true total costs whilst
improving your productivity - Unidrive
rewrites the
standards for all drive users. As a Solutions Platform with
ultimate flexibility, it is the point from which all drive users should measure themselves.

Flexibility

Open loop, Closed loop, Servo and Regeneration modes of operation all selectable as standard by the user.

Widest possible fieldbus option range with PROFIBUS, DeviceNet, CANopen, Modbus RTU, INTERBUS, CTNet.

Unique fieldbus to fieldbus gateway approach eliminates costly interfaces when more than one fieldbus type is required.











Unidrive SP Group





True scalability of the PLC processing power with internal SM-Applications technology.

System status can be accessed whilst drives are running using the "hot-pluggable" RJ45 port and CTSoft PC tool.

User interface requirements can be scaled to budget and application with a choice of LED or dual language LCD keypads.

Universal encoder feedback accepts 14 different types.

Global voltage supply, 200V to 575V ac.

Performance

Powerful SM-Applications module option for implementing fully customized solutions, or executing pre-engineered solutions. Conforms to IEC61131-3.

Ultra fast speed and torque updates maximize dynamic response in demanding applications.

Drive to drive synchronization for multiaxis motion co-ordination.

Distributed control via CTNet fieldbus.

Rapid response to motion profile demands with dynamic 250µs update rate.

True system drive performance scalable to your solution.

Integrated EMC filter meets EN61800-3.

Secure Disable feature as standard reduces cost by lowering system component count while meeting EN954-1 category 3.

Modbus RTU as standard.

Auto parameter back-up by using the for security and fast commissioning.

Only one learning curve for mastering all types of drives.

Zero space PLC (IEC61131-3) option.

Prepackaged applications software

for Winders, Flying Shears, etc, etc.

Truly scalable PLC power with up to 3 zero-space SM-Applications modules.

Typical Applications



Normal Duty
(open loop)

Suitable for most applications, current overload is set at 110% for 60s. Where motor rated current is less than the drive rated continuous current, higher overloads are achieved.

Heavy Duty
(open loop)

Suitable for more demanding applications, current overload is set at 150% for 60s. Where motor rated current is less than the drive rated continuous current, higher overloads ( 200% or greater) are achieved.

Heavy Duty
(closed loop,
servo)

Suitable for demanding applications where high dynamic shaft performance is necessary, current overload is set at 175% for 20s. Where motor rated current is less than the drive rated continuous current, higher overloads (200% or greater) are achieved.

General Specifications

AC supply requirements

SPX20X 200V to 240V ±10%
SPX40X 380V to 480V ±10%
SPX50X 500V to 575V ±10%

Number of phases: 3
Maximum supply imbalance: 2% negative phase sequence (equivalent to 3% voltage imbalance between phases). Frequency range: 48 to 65 Hz

Line reactors

Line reactors are particularly recommended for use with the following drive models when one of the above factors exists, or when the supply capacity exceeds 175kVA:

SP1201 SP1202 SP1203  SP1204
SP1401 SP1402 SP1403 SP1404

Model sizes 1405 and larger have an internal DC choke so they do not require AC line reactors except for cases of excessive phase unbalance or extreme supply conditions.
For three-phase drives, three individual reactors or a single three-phase reactor should be used. Each drive must have its own reactor (s).

Reactor current ratings
The current rating of the line reactors should be as follows:

Continuous current rating:
Not less than the continuous input current rating of the drive

Repetitive peak current rating:
Not less than twice the continuous input current rating of the drive

Temperature, humidity and cooling method

Ambient temperature operating range:
0°C to 50°C (32°F to 122°F). Output current de-rating must
applied at ambient temperatures >40°C (104°F).

Minimum temperature at power-up: -15°C (5°F)
Cooling method: Forced convection
Maximum humidity: 95% non-condensing at 40°C (104°F)
Storage: -40°C (104°F) to +50°C (122°F)

Altitude

Altitude range: 0 to 3,000m (9,900 ft), subject to the following conditions:
1,000m to 3,000m (3,300 ft to 9,900 ft) above sea level:
de-rate the maximum output current from the specified figure by 1% per 100m (330 ft) above 1,000m (3,300 ft)

For example at 3,000m (9,900ft) the output current of the drive would have to be de-rated by 20%.

Ingress protection

The Unidrive SP is rated to IP20 pollution degree 2 (dry, non-conductive contamination only). However, it is possible to configure the drive to achieve IP54 rating at the rear of the heatsink for through-panel mounting (some current derating is required).
In order to achieve the high IP rating at the rear of the heatsink with Unidrive SP size 1 and 2, it is necessary to seal a heatsink vent by fitting the IP54 insert as shown in Figure 3-18
Fitting of IP54 insert for size 1 on page 20. For strict compliance with IP54 rating the heatsink fan must be replaced with an IP54 rated fan. Contact the supplier of the drive for details. Fitting of the IP54 insert and/or IP54 rated fan requires output current de-rating to be applied

Starts per hour

By electronic control: unlimited
By interrupting the AC supply:
Unidrive SP (Sizes 1 to 3): .20 (equally spaced)

Accuracy and resolution

Speed:
The absolute frequency and speed accuracy depends on the accuracy of the crystal used with the drive microprocessor. The accuracy of the crystal is 100ppm, and so the absolute frequency/speed accuracy is 100ppm (0.01%) of the reference, when a preset speed is used. If an analog input is used the absolute accuracy is further limited by the absolute accuracy of the analog input.

The following data applies to the drive only; it does not include the performance of the source of the control signals.

Open loop resolution:
Preset frequency reference: 0.1Hz
Precision frequency reference: 0.001Hz

Closed loop resolution:
Preset speed reference: 0.1rpm
Precision speed reference: 0.001rpm
Analog input 1: 16bit plus sign
Analog input 2: 10bit plus sign

Current:
The resolution of the current feedback is 10bit plus sign. The accuracy of the current feedback is 5%.

Output frequency / speed range
Open-loop frequency range: 0 to 3,000Hz
Closed-loop speed range: 0 to 40,000rpm
Closed-loop frequency range: 0 to 1,250Hz
Options

Unidrive SP - The Solutions Platform

The Unidrive SP provides application and system
designers with an incredibly flexible drive platform, which is easily modified by an extensive range of sophisticated
SM option modules that can be used singly or in combination for economical and space saving solutions.

SM option modules install easily into any of the three option slots, with no tools required. The I/O, feedback, memory, communication and application modules enable the Unidrive to provide an optimized solution regardless of the demands of the application.

A complete range of other accessories are available to simplify system integration and meet system design criteria.


Options At-A Glance


Option Description Order Code
Drive Configuration and Programming Cloning and Programmed Storage Card Smart Card ***
Configuration Tool CTSoft ***
Communications Cable CT Comms Cable
Operator Interface No Keypad As standard
LED Keypad SM-Keypad
Backlit LCD Keypad SM-Keypad Plus
Operator Interfaces HMI details See products for details
Power Accessories Internal Fitting Brake Resistor SM - Heatsink DBR
Panel Mounting DB Resistors
E Stop Duty
To fit drive
Wall Mounting DB Resistors
Cyclic Duty
To fit drive
Internal Fitting EMC Filter As standard
External Fitting EMC Filters To fit drive
Motor Feedback Universal Encoder Feedback SM-Universal
Encoder Plus
Second Encoder Feedback SM-Encoder Plus
Resolver Input Feedback SM-Resolver**
Encoder Terminal Connector SM-ETC
Input/Output Extra I/O SM-I/O Lite
Extra I/O with Real Time Clock SM-I/O Timer
Extended I/O SM-I/O Plus
Double Insulated Extended I/O SM-I/O PELV
24V Protected I/O SM-I/O 24V
120V I/O SM-I/O 120V
Remote Network I/O Beckhoff I/O
Communication Modbus RTU (Standard) SM-Applications*
PROFIBUS-DP SM-PROFIBUS-DP
INTERBUS SM-INTERBUS
DeviceNet SM-DeviceNet
CTNet SM-Applications
CAN Interface SM-CAN
CANopen SM-CANopen
Interface SM-SLM
SERCOS SM-SERCOS
Ethernet SM-Ethernet
Application
Co-processor Modules
System Programming SM-Applications
System Programming SM-Applications Lite
Motion Made Easy SM-EZMotion**
Application Programming Software SyPTLite (IEC61131-3) Free with Unidrive
SyPTPro (IEC61131-3) SyPTPro
Power Tools Pro Free download
Solutions Software Dual Mode Winder SSP-4000-0010
Flying Shear Control SSP-4000-0020
Fan and Pump Duty Assist SSP-4000-0030
* Provides additional Modbus RTU port.
** Only one of these modules per drive.
*** Supplied as standard with Unidrive




Introduction
For installations where it is deemed necessary, Control Techniques provide a range of EMC filters. These have all been assessed for conformance with the EMC directive, by testing with the appropriate drives.

The EMC characteristics of the drive products make an important contribution to the compliance of end products and installations. All drive products have been subject to EMC testing in representative installations. EMC data sheets are available for all major drive products. These list the harmonized standards complied with and give recommended installation techniques and further information on EMC behavior in typical situations.
Drive Filter Type Schaffner Epcos
CT part no. CT part no.
SP1201 Footprint or
Bookcase
4200-6118 4200-6121
SP1202
SP1203 4200-6119 4200-6120
SP1204
SP2201 Footprint or
Bookcase
4200-6210 4200-6211
SP2202
SP2203
SP3201 Footprint or
Bookcase
4200-6307 4200-6306
SP3202
SP1401 Footprint or
Bookcase
4200-6118 4200-6121
SP1402
SP1403
SP1404
SP1405 4200-6119 4200-6120
SP1406
SP2401 Footprint or
Bookcase
4200-6210 4200-6211
SP2402
SP2403
SP3401 Footprint or
Bookcase
4200-6305 4200-6306
SP3402
SP3403

CT part number

Manufacturer

Manufacturer part number

Maximum continuous current

Voltage rating

IP rating

Power dissipation at rated current

Ground Leakage

Discharge resistors

Balance supply phase-phase and phase-ground mA

1 phase open circuit mA

@ 40°C (104°F) A

@ 50°C (122°F) A

V

W

4200-6118

Schaffner

FS6008-10-07

10

10

200/400

20

6.9

29.4

153



See note 1 below



4200-6119

Schaffner

FS6008-16-07

16

16

200/400

20

9.2

38.8

277

4200-6210

Schaffner

FS6008-32-07

32

28.2

200/400

20

11

38

206

4200-6305

Schaffner

FS6008-62-07

62



400

20







4200-6307

Schaffner

FS6008-75-07

75



200

20









4200-6121

Epcos

B84143-A10-R207

10

9.1

200/400

20

4.2

<30.0

186.5



See note 2 below



4200-6120

Epcos

B84143-A16-R207

16

14.6

200/400

20

10.8

<30.0

186.5

4200-6211

Epcos

B84143-32-R207

32

29.1

200/400

20

17.8

<30.0

186.5

4200-6306

Epcos

B84143-75-R207

75

68.3

200/400

20

19.4

<30.0

238

NOTE:
1. 1M. in a star connection between phases, with the star point connected by a 680k. resistor to ground.
2. 1M. in a star connection between phases, with the star point connected by a 1.5M. resistor to ground.

Maximum current overload:
150% of rated current for 1 minute in a 1 hour period.
Voltage:
Phase-to-phase: 480V
Phase-to-ground: 275V
AC supply frequency:
48 to 62Hz

CT Part Number

Manufacturer

Manufacturer
part number

Dimension

Weight

H

W

D

kg

lb

4200-6118

Schaffner

FS6008-10-07

440 mm (17.323 in)

100 mm (3.937 in)

45 mm (1.772in)

1.35

3.0

4200-6119

Schaffner

FS6008-16-07

1.4

3.1

4200-6210

Schaffner

FS6008-32-07

428.5 mm (16.870 in)

155 mm (6.102 in)

55 mm (2.165 in)

2

4.4

4200-6305

Schaffner

FS6008-62-07

414 mm (16.299 in)

250 mm (9.842 in)

60 mm (2.362 in)

3.45

7.6

4200-6307

Schaffner

FS6008-75-07

4200-6121

Epcos

B84143-A10-R207

450 mm (17.717 in)

100 mm (3.937 in)

45 mm (1.772 in)

2.1

4.62

4200-6120

Epcos

B84143-A16-R207

4200-6211

Epcos

B84143-32-R207

431.5 mm (16.988 in)

155 mm (6.102 in)

55 mm (2.165 in)

3.3

7.3

4200-6306

Epcos

B84143-75-R207

425 mm (16.732 in)

250 mm (9.843 in)

60 mm (2.362 in)

5.1

11.2

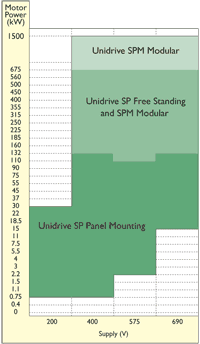

Unidrive SP Modular

Unidrive SP Panel Mount

Unidrive SP Free Standing

Unidrive SP AC and Servo Drives with option Kits

Unidrive SP Rating Table

Unidrive SP Dimensions

Unidrive SP SM-Modules




LISTED
E171230/
8D14

Qualified for the Energy Technology List
