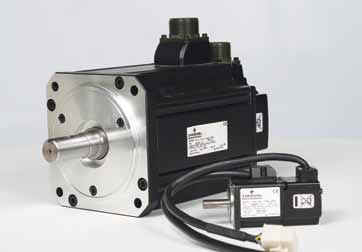

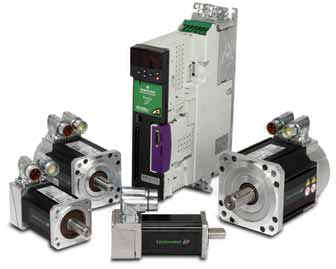

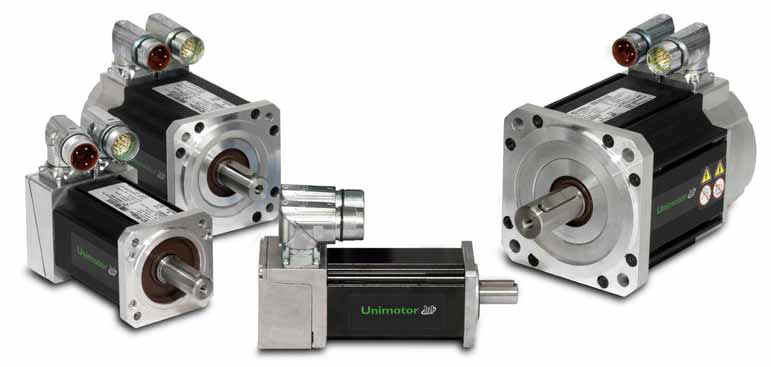

Unimotor HD 230V / 460V - Motor Order List

230 Vac Non-Braked Motors

Stall Torque
 Rated Torque Stall Current (A) Rated Speed (rpm) Order Code for Incremental Encoder 4096ppr Order Code for Inductive Absolute Multi-turn Encoder Weight (lbs)
(lb-in) (Nm) (lb-in) (Nm)
6.4 0.72 6.2 0.7 0.97 3000 *055EDA300BACRA063110 *055EDA300BAEMA063110 2.6
10.4 1.18 9.3 1.05 1.36 3000 *055EDB300BACRA063110 *055EDB300BAEMA063110 3.3
14.6 1.7 13.1 1.5 1.5 3000 *055EDC300BACRA063110 *055EDC300BAEMA063110 4.0
14.6 1.7 10.6 1.2 3.4 6000 *055EDC600BACRA063110 *055EDC600BAEMA063110 4.0
12.8 1.5 12.4 1.4 1.6 3000 067EDA300BACRA 067EDA300BAEMA 4.40
12.8 1.5 11.5 1.3 3.1 6000 067EDA600BACRA 067EDA600BAEMA 4.40
22.6 2.6 21.7 2.5 2.7 3000 067EDB300BACRA 067EDB300BAEMA 5.73
22.6 2.6 19.5 2.2 5.5 6000 067EDB600BACRA 067EDB600BAEMA 5.73
48.7 5.5 42.9 4.9 5.9 3000 089EDB300BACAA 089EDB300BAECA 9.70
48.7 5.5 40.3 4.6 7.9 4000 089EDB400BACAA 089EDB400BAECA 9.70
70.8 8.0 61.1 6.9 8.6 3000 089EDC300BACAA 089EDC300BAECA 12.3
70.8 8.0 56.2 6.4 11.4 4000 089EDC400BACAA 089EDC400BAECA 12.3
90.3 10.2 68.1 7.7 11.0 3000 115EDB300BACAA 115EDB300BAECA 15.9
129.2 14.6 92.9 10.5 15.7 3000 115EDC300BACAA 115EDC300BAECA 19.6

230 Vac Braked Motors

Stall Torque
 Rated Torque Stall Current (A) Rated Speed (rpm) Order Code for Incremental Encoder 4096ppr Order Code for Inductive Absolute Multi-turn Encoder Weight (lbs)
(lb-in) (Nm) (lb-in) (Nm)
6.4 0.72 6.2 1.7 0.97 3000 *055EDA305BACRA063110 *055EDA305BAEMA063110 3.5
10.4 1.18 9.3 1.05 1.36 3000 *055EDB305BACRA063110 *055EDB305BAEMA063110 4.2
12.83 1.45 12.4 1.4 1.56 3000 067EDA305BACRA 067EDA305BAEMA 5.94
22.6 2.6 21.7 2.5 2.7 3000 067EDB305BACRA 067EDB305BAEMA 7.3
70.8 8.0 61.1 6.9 8.6 3000 089EDC305BACAA 089EDC305BAECA 14.3
129.2 14.6 92.9 10.5 15.7 3000 115EDC305BACAA 115EDC305BAECA 22.9

460 Vac Non-Braked Motors

Stall Torque
 Rated Torque Stall Current (A) Rated Speed (rpm) Order Code for Incremental Encoder 4096ppr Order Code for Inductive Absolute Multi-turn Encoder Weight (lbs)
(lb-in) (Nm) (lb-in) (Nm)
6.4 0.72 6.2 0.7 0.97 3000 *055UDA300BACRA063110 *055UDA300BAEMA063110 2.6
10.4 1.18 9.3 1.05 0.79 3000 *055UDB300BACRA063110 *055UDB300BAEMA063110 3.3
14.6 1.7 13.1 1.5 1.5 3000 *055UDC300BACRA063111 ** Call Microcon ** 4.8
12.8 1.5 11.5 1.3 1.8 6000 067UDA600BAEMA 067UDA600BAEMA 4.40
22.6 2.6 21.7 2.5 1.6 3000 067UDB300BACRA 067UDB300BAEMA 5.73
22.6 2.6 19.5 2.2 3.2 6000 067UDB600BACRA 067UDB600BAEMA 5.73
28.3 2.0 26.6 3.0 2.0 3000 089UDA300BACAA 089UDA300BAECA 6.80
48.7 5.5 42.9 4.9 3.4 3000 089UDB300BACAA 089UDB300BAECA 9.70
48.7 5.5 40.3 4.6 4.6 4000 089UDB400BACAA 089UDB400BAECA 9.70
70.8 8.0 61.1 6.9 5.0 3000 089UDC300BACAA 089UDC300BAECA 12.1
70.8 8.0 56.2 6.4 6.7 4000 089UDC400BACAA 089UDC400BAECA 12.1
90.3 10.2 42.5 7.7 6.4 3000 115UDB300BACAA 115UDB300BAECA 15.9
129.2 14.6 92.9 10.5 9.1 3000 115UDC300BACAA 115UDC300BAECA 19.6
166.4 18.8 120.4 13.6 11.8 3000 115UDD300BACAA 115UDD300BAECA 23.6
221.3 25.0 162.8 18.4 15.6 3000 142UDC300BACAA 142UDC300BAECA 25.3

460 Vac Braked Motors

Stall Torque
 Rated Torque Stall Current (A) Rated Speed (rpm) Order Code for Incremental Encoder 4096ppr Order Code for Inductive Absolute Multi-turn Encoder Weight (lbs)
(lb-in) (Nm) (lb-in) (Nm)
6.4 0.72 6.2 0.7 0.97 3000 *055UDA305BACRA063110 *055UDA305BAEMA063110 3.5
10.4 1.18 9.3 1.05 0.79 3000 *055UDB305BACRA063110 *055UDB305BAEMA063110 4.2
14.6 1.7 13.1 1.5 1.5 3000 *055UDC305BACRA063110 *055UDC305BAEMA063110 4.84
22.6 2.6 21.7 2.5 1.6 3000 067UDB305BACRA 067UDB305BAEMA 7.28
48.7 5.5 42.9 4.9 3.4 3000 089UDB305BACAA 089UDB305BAECA 11.18
70.8 8.0 61.1 6.9 5.0 3000 089UDC305BACAA 089UDC305BAECA 14.3
90.3 10.2 42.5 7.7 4.3 3000 115UDB305BACAA 115UDB305BAECA 16.74
129.2 14.6 92.9 10.5 9.1 3000 115UDC305BACAA 115UDC305BAECA 22.9
129.2 14.6 92.9 10.5 11.8 3000 115UDC305BACAA 115UDC305BAECA 25.34
221.3 25.0 162.8 18.4 15.6 3000 142UDC305BACAA 142UDC305BAECA 31.5
336.3 38.0 203.6 23.0 23.8 3000 142UDE305JACAA 142UDE305JAECA 46.9
752.3 85.0 606.2 68.5 26.6 1500 190UDF155JACAA 190UDF155JAECA 97.0

Installed shaft seal included.

* To order 055 frame motors with 14 mm shaft dia. include the BCD and shaft diameter codes "063140" suffix. Ex.055EDC300BACRA063140

Note: Torque values relate to 12 kHz switching frequency
