Brusatori DC laminated motors ML series

General

DC motors ML series have been designed to meet all the industrial application requirements, which ask for machines with adjustable speed and torque in a wide and precise field. All motors have completely laminated square stators and use high quality and high efficiency magnetic lamination, with low losses.

Specifications and selection table

Main features

  • Winding coils insulation: class F according to CEI EN 60034-1
  • Thermal dimensioning: class F according to CEI EN 60034-1
  • Protection degree: IP23 according to CEI EN 60034-5
  • Cooling: IC 06 (for motor IP23) according to CEI EN 60034-6
  • Balancing degree: G 2,5 according to ISO 1940-1 (1993) (half-key balancing for key shafts according to CEI 2-23)
  • Mounting arrangement: IM B5 e IMB35 (IM3001)
  • Lubricated for life ball bearings
  • Thermal protection: thermal cut-out with normally closed contact. Operating temperature 130C5C. (Maximum voltage 250Vac, maximum current 6Aac)
  • Colour: Blue RAl 5010
  • Reference conditions: environment +40C, max. height 1000m above sea level.
  • Storage temperature: -20C +70C

Standard encoder (on request)

Standard Tachogenerator (on request)

Options

ML

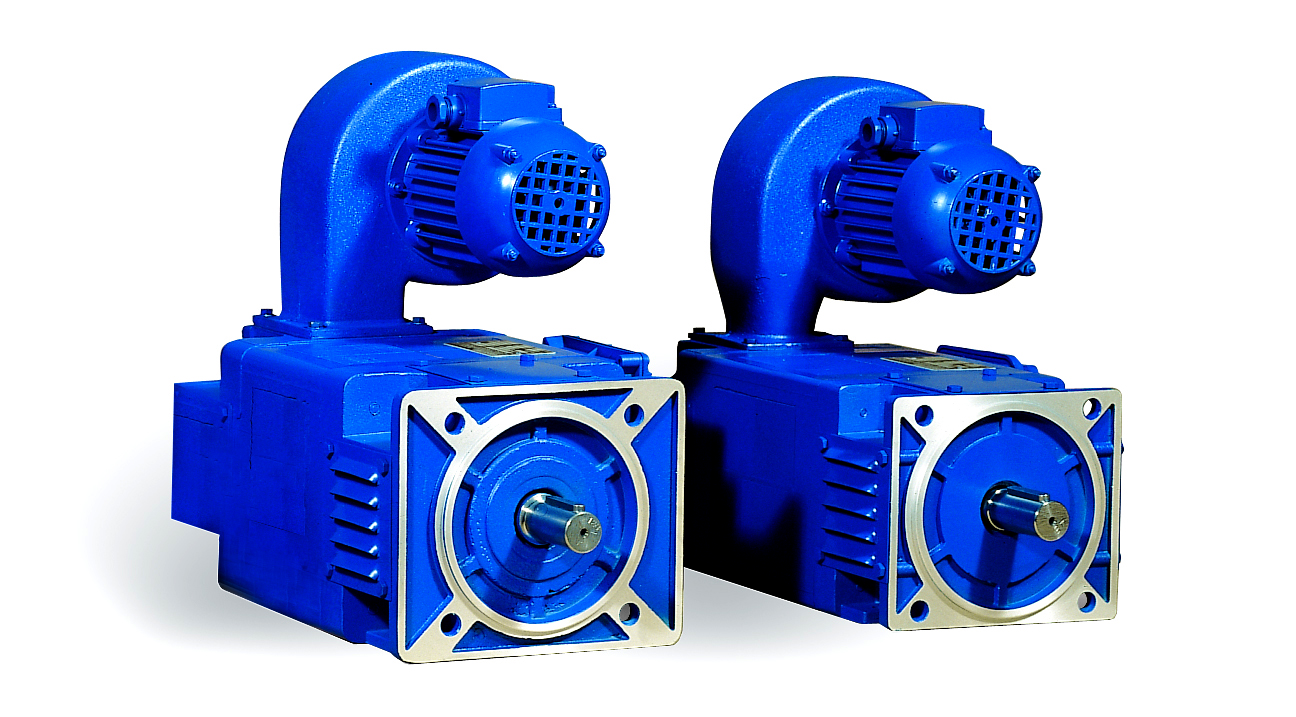

ML71 / ML 80

ML71 / ML80

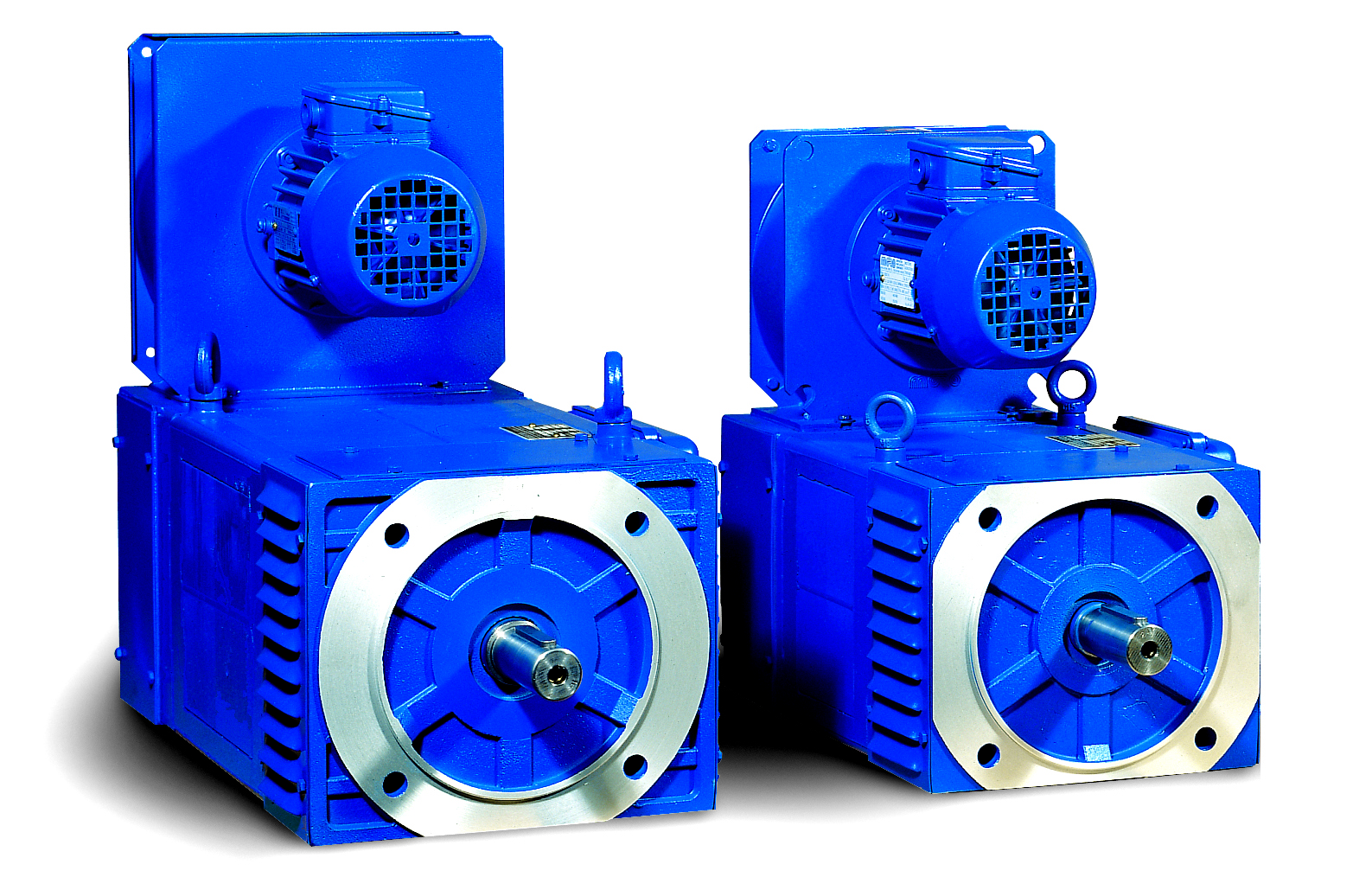

ML 100 / ML 112

ML 100/ ML112




Electrical Data



Dimensions

Reserved copyright for Brusatori.
