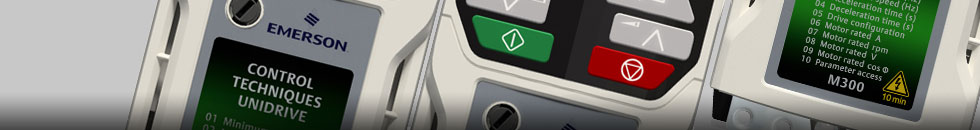

Unidrive "M300"  AC Open Loop Drive with Dual Safe Torque off Channels

****Currently Obsolete by the manufacturer. A replacement Drive is available.

**Legacy Product Replaced by Commander C300

Please contact Microcon for a Replacement****

Unidrive M300 AC drive - Enhance throughput with Machine Safety

0.33hp - 30hp (0.25kW - 22kW)

115V / 230V / 460V / 575V

  • M300 adds integrated Machine Safety

M300 helps machine builders maximize up-time and meet modern functional safety standards. Dual onboard Safe Torque Off (STO) inputs offer easy SIL3/PLe conformity and reduce the need for external components, minimizing overall machine dimensions and costs.

Features

Enhance productivity through integration with the automation system and reduce machine downtime

  • Optional RS485 and a wide range of fieldbus communication SI modules allow remote control and diagnostics with different networks

  • Flexible I/O

Quick and easy to install and configure

  • Simple fixed LED keypad as standard

  • 10 most commonly used parameters listed on front of drive

Reduce machine size and cost

  • Compact drive dimensions, among the smallest in class at every power rating

Save energy

  • Low losses up to 98% efficient

  • Low power standby mode

Typical applications

  • Speed control for material transport, cutting, woodworking, machine tools; where protection to people or assets is required

Specifications

Key data

  • Heavy Duty rating:  0.33hp - 30hp (0.25kW - 22kW)

  • Supply phases:

    • Size 1 to 4: 110V drives – 1 phase, 230 and 400V drives - 1 or 3 phase

    • Size 5 upwards: 3 phase

Standard features

Machine safety:

  • 2 x Safe Torque Off terminals

Keypad:

  • Fixed LED

Option slots:

  • 1 (Size 2 and above)

Parameter cloning Via:

  • PC tools

  • SD card

Voltage ratings

100V (100V - 120V ± 10%)

X

200V (200V - 240V ± 10%)

X

400V (380V - 480V ± 10%)

X

575V (500V - 575V ± 10%)

X

690V (500V - 690V ± 10%)



Control mode

Open loop Vector or V/Hz induction motor control

X

Open loop Rotor Flux Control for induction motors (RFC-A)

X

Open loop permanent magnet motor control (RFC-S)



Closed loop Rotor Flux Control for induction motors (RFC-A)



Closed loop permanent magnet motor control (RFC-S)



Active Front End (AFE) power quality convertor





frame size

Dimensions (h X w x d)

Weight kg (lb)


mm

in

kg

lb

1

 160 x 75 x 130
DIN rail mounting:
137 x 75 x 130

6.3 x 3.0 x 5.1
DIN rail mounting:
5.4 x 3.0 x 5.1

 0.75 1.65

2

205 x 75 x 150

DIN rail mounting:
180 x 75 x 150

 8.1 x 3.0 x 5.9
DIN rail mounting:
7.1 x 3.0 x 5.9		 1.0 2.2

3

 226 x 90 x 160 8.9 x 3.5 x 6.3 1.5 3.3

4

 277 x 115 x 175 10.9 x 4.5 x 6.9 3.13 6.9

5

391 x 143 x 192

15.4 x 5.6 x 7.6

7.4

16.3

6

 391 x 210 x 221 15.4 x 8.3 x 8.7 14 30.9

Options

Keypad

 Remote keypad
All the features of the CI-Keypad LCD, but remote mountable. This allows flexible mounting on the outside of a panel and meets IP66 (NEMA 4)

System Integration Modules - Communications

 SI-PROFIBUS
PROFIBUS interface module

SI-DeviceNet
DeviceNet interface module

SI-CANopen
CANopen interface module supporting various profiles, including several drive profiles

SI-Ethernet
External Ethernet module that supports PROFINET RT*, EtherNet/IP and Modbus TCP/IP and has an integrated web server that can generate emails. The module can be used to provide high speed drive access, global connectivity and integration with IT network technologies, such as wireless networking

SI-EtherCAT*
EtherCAT interface module

System Integration Modules - Additional I/O

SI-I/O
Extended I/O interface module to increase the number of I/O points on a drive

System Integration Modules - Safety

 SI-Safety*
Safety module that provides an intelligent, programmable solution to meet the IEC 61800-5-2 functional safety standard

Drive interface units - Back-up

 AI-Back-up Adaptor
Port adaptor that allows the drive to use an SD card for parameter cloning, and an input for 24 V back-up

Drive interface units - Communications

 AI-485 Adaptor
Port adaptor that allows the drive to communicate via RS485





Unidrive M300 Available Sizes

115 VAC, Single Phase 50/60 Hz Input, 230 VAC 3-phase Output

Normal Duty
Heavy Duty Base Order Code Dimensions (H x W x D) (in) Weight (lbs)
HP Amps HP Amps
0.33 1.7 0.33 1.7 M300-01100017 6.3 X 3.0 X 5.1 1.7
0.5 2.4 0.5 2.4 M300-01100024
1 4.2 1 4.2 M300-02100042 8.1 X 3.1 X 5.9 2.2
1.5 5.6 1.5 5.6 M300-02100056



230 VAC, Single Phase Input, 3-Phase Output, 50/60 Hz Input

Normal Duty
Heavy Duty Base Order Code Dimensions (H x W x D) (in) Weight (lbs)
HP Amps HP Amps
0.33 1.7 0.33 1.7 M300-01200017 6.3 X 3.0 5.1 1.7
0.5 2.4 0.5 2.4 M300-01200024
0.75 3.3 0.75 3.3 M300-01200033
1 4.2 1 4.2 M300-01200042
0.5 2.4 0.5 2.4 M300-02200024 8.1 X 3.1 X 5.9 2.2
0.75 3.3 0.75 3.3 M300-02200033
1 4.2 1 4.2 M300-02200042
1.5 5.6 1.5 5.6 M300-02200056
2 7.5 2 7.5 M300-02200075
3 10 3 10 M300-03200100 8.9 X 3.5 X 6.3 3.3
3 13.3 3 13.3 M300-04200133 10.9 X 4.5 X 6.9 6.9



230 VAC, 1 or 3-Phase Input, 3-Phase Output, 50/60 Hz Input

Normal Duty
Heavy Duty Base Order Code Dimensions (H x W x D) (in) Weight (lbs)
HP Amps HP Amps
0.5 2.4 0.5 2.4 M300-02200024 8.1 X 3.1 X 5.9 2.2
0.75 3.3 0.75 3.3 M300-02200033
1 4.2 1 4.2 M300-02200042
1.5 5.6 1.5 5.6 M300-02200056
2 7.5 2 7.5 M300-02200075
3 10 3 10 M300-03200100 8.9 x 3.5 x 6.3 3.3
3 13.3 3 13.3 M300-04200133

10.9 X 4.5 X 6.9

 6.9
5 17.6 5 17.6 M300-04200176
10 30 7.5 25 M300-05200250 15.4 X 5.6 X 7.9 16.3
15 50 10 33 M300-06200330 15.4 X 8.3 X 9.0 30.9
20 58 15 44 M300-06200440
25 75 20 61 M300-07200610 21.9 X 10.6 X 11.0 61.7
30 94 25 75 M300-07200750
40 117 30 83 M300-07200830
50 149 40 116 M300-08201160 31.7 X 12.2 X 11.4 114.6
60 180 50 132 M300-08201160
75 216 60 176 M300-09201760 43.6 X 12.2 X 11.4 146.6
100 266 75 219 M300-09202190
75 216 60 176 M300-09201760E 42.1 X 12.2 X 11.4 101.4
100 266 75 219 M300-09202190E



460 VAC, 3-Phase Input and Output, 50/60 Hz Input

Normal Duty
Heavy Duty Base Order Code Dimensions (H x W x D) (in) Weight (lbs)
HP Amps HP Amps
0.5 1.3 0.5 1.3 M300-02400013 8.1 x 3.1 x 5.9 2.2
0.75 1.8 0.75 1.8 M300-02400018
1 2.3 1 2.3 M300-02400023
1.5 3.2 1.5 3.2 M300-02400032
2 4.1 2 4.1 M300-02400041
3 5.6 3 5.6 M300-03400056 8.9 x 3.5 x 6.3 3.3
3 7.3 3 7.3 M300-03400073
5 9.4 5 9.4 M300-03400094
7.5 13.5 7.5 13.5 M300-04400135 10.9 x 4.5 x 6.9 6.9
10 17 10 17 M300-04400170
20 30 20 27 M300-05400270 15.4 X 5.6 X 7.9 16.3
20 30 20 30 M300-05400300
25 38 25 35 M300-06400350 15.4 X 8.3 X 9.0 30.9
30 48 30 42 M300-06400420
50 63 30 47 M300-06400470
50 63 30 46 M300-06400470 15.4 X 8.3 X 9.0 30.9
60 79 50 66 M300-07400660 21.9 X 10.6 X 11.00 61.7
75 94 60 77 M300-07400770
75 112 75 100 M300-07401000
125 155 100 134 M300-08401340 31.7 X 12.2 X 11.4 114.6
150 184 125 157 M300-08401570
150 221 150 180 M300-09402000 43.6 X 12.2 X 11.4 146.6
200 255 150 211 M300-09402240
150 221 150 180 M300-09402000E 42.1 X 12.2 X 11.4 101.4
200 266 150 211 M300-09402240E



575 VAC, 3-Phase Input and Output, 50/60 Hz Input

Normal Duty
Heavy Duty Base Order Code Dimensions (H x W x D) (in) Weight (lbs)
HP Amps HP Amps
3 3.9 2 3 M300-05500030 14.9 X 5.6 X 7.9 16.3
5 6.1 3 4 M300-05500040
7.5 10 5 6.9 M300-05500069
10 12 7.5 10 M300-06500100 14.9 X 8.3 X 8.9 30.9
15 17 10 15 M300-06500150
20 22 15 19 M300-06500190
25 27 20 23 M300-06500230
30 34 25 29 M300-06500290
40 43 30 35 M300-06500350
50 53 40 44 M300-07500440 21.9 X 10.6 X 11.0 61.7
60 73 50 55 M300-07500550
75 86 60 63 M300-08500630 31.7 X 12.2 X 11.4 114.6
100 108 75 86 M300-08500860
125 125 100 104 M300-09501040 43.6 X 12.2 X 11.4 146.6
150 150 125 131 M300-09501310
125 125 100 104 M300-09501040E 42.1 X 12.2 X 11.4 101.4
150 150 125 131 M300-09501310E

***Keypads are sold separate.
