Digitax ST Drives

Digitax ST 0.72Nm to 19.3Nm (Peak 57.7Nm)

Environmentally Friendly Drives

New - Digitax ST

200/400Volts, Servo Drives Range - Intelligent, Compact and Dynamic

Overview

Meeting the demands of modern lean manufacturing environments requires smaller more flexible machinery. Digitax ST is the first ever drive designed to help machine designers and system integrators meet these challenges; optimized for servo applications requiring high peak torque, dynamic response, ease of use and flexible integration features. Four product variants ensure that the drive's personality perfectly matches your servo applications.

Digitax ST - Base

Optimized for centralized control, to operate with motion controllers, motion PLCs and industrial PC based motion systems using a wide range of digital or analogue interface technologies.

Digitax ST - Indexer

Designed for simple standalone positioning applications using an onboard position controller. Fieldbus, Ethernet and IO enable connectivity to other automation components.

Digitax ST - EZ Motion

This drive offers a stand alone solution for many common indexing and synchronized motion applications. This is achieved using a unique PC programming interface that guides the user through the drive, I/O and motion configuration.

Digitax ST - Plus

Features a full functionality motion controller, optimized for high performance machine cells requiring drive-to-drive networking and precision synchronization. The motion and communications are configured within a flexible IEC61131-3 software development environment using PLC open function blocks. Fieldbus, Ethernet and I/O connectivity enable interfacing with other automation components and intellectual property protection ensures that your valuable knowledge remains secure.

Typical Applications

  • Printing

  • Packaging

  • Pick and Place

  • Material Handling

  • Indexing

  • Conveyor Positioning

  • Cut-to-length

  • Labeling

  • Rotary Knife

  • Flying Shear

Benefits

  • Onboard position controller offers superior performance and reduces cubicle space

  • High-speed drive to drive network reduces wiring and improves system performance

  • Familiar programming environments reduce development time

  • Real-time servo networks such as EtherCAT, SERCOS and CAN open allow the drive to operate with most motion controllers

  • Ethernet and Fieldbus connectivity enable the drive to integrate with other parts of the automation system

  • Onboard universal encoder input is able to connect to incremental, SinCos, Hiperface, EnDAT and SSI encoders as standard

  • The drive features a safe torque off input which disables the output stage of the drive with a high degree of security.  This reduces the cost of complying with machine safety standards such as EN954 Cat 3 and enables the drive to integrate easily with the machine safety system

  • Designed to operate with Unimotor FM, a complete range of high-performance servo motors for industrial environments


Software

Our Software makes it easy to access the drives features; it allows you to quickly setup the drive, optimize the tuning, back-up the configuration, program the onboard motion controller and setup communications links.

  • CTSoft - Drive configuration and index motion programming

  • CTScope - Software oscilloscope

  • SyPTLite - Ladder program editor

  • SyPTPro - Full automation system programming tool

  • CTOPCServer - OPC compliant server for interfacing with Control Techniques drives

The Software tools communicate using Ethernet, CTNet, Serial or USB connections. Ethernet allows the software tools to easily use the internet infrastructure allowing Control Techniques drives to be accessed remotely, from virtually anywhere around the world.

CTSoft

CTSoft is a configuration tool for commissioning, optimizing and monitoring Control Techniques drives. It allows you to:

  • Easily configure the drive using wizards

  • Read, save and load drive configuration settings

  • Manage the drive's smartcard data

  • Visualize and modify the configuration with live animated diagrams

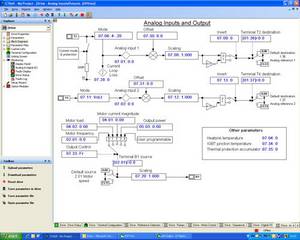

CTSoft Screen

Index Motion Controller

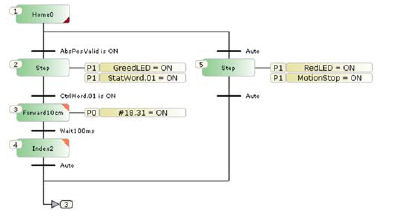

Digitax ST - index motion controller is programmed within CTSoft using industry standard Sequential Function Chart (SFC) language. The user can quickly configure a range of motion commands such as homing and various index moves. The focus is on reducing development time and ease of use.

Index Motion Program

The status of the program can be monitored and the speed of the motion reduced for commissioning and testing purposes:

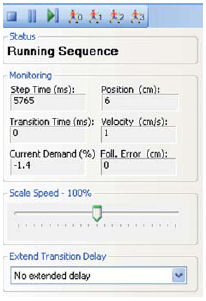

Index Motion Control Panel

CTScope

CTScope is a full featured software oscilloscope for viewing and analyzing changing values within the drive.  The time base can be set to give high speed capture for tuning or intermittent capture for longer term trends.  The interface is based on a traditional oscilloscope, making it familiar to engineers across the globe.

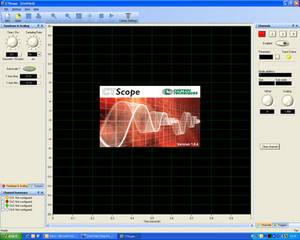

CTScope - Realtime Oscillocope Software

SyPTLite

SyPTLite is an easy to use ladder logic program editor, suitable for simple drive applications. SyPTLite is ideal for controlling basic logic and sequencing with Commander SK and Unidrive SP onboard PLC and with SM-Applications Lite option module.

SyPTLite Ladder Logic

SyPTPro

SyPTPro is a full featured automation development environment that can be used for creating solutions to single or multiple drive applications.  The programming environment fully supports three industry standard programming languages: Function Block, Ladder and Structured Text. Motion is configured using PLC open function blocks that support a master and slave axis configuration.

PLCopen Motion Function Blocks

SyPTPro is also used to configure CTNet - a high speed drive-to-drive network links together multiple drives, SCADA, operator panels and I/O to form an intelligent networked system.

SyPTPro Network Configuration

CTOPCServer

CTOPCServer  is an OPC compliant server that allows PCs to communicate with Control Techniques drives. The server supports communication using Ethernet, CTNet, Serial RS485 and USB. OPC is a standard interface on SCADA packages and is widely supported within Microsoft products.


Options

A wide range of option modules are available to allow you to customize Digitax ST for your application.

Keypads

Digitax ST Keypad

Removable keypad

Digitax ST Keypad

Communications

SM-EtherCAT

EtherCAT slave option module for high performance servo applications

NEW SM-EtherCAT

 SM-CANopen

CANopen interface supporting various profiles including several drive profiles

SM-CANopen

 SM-SERCOS

Sercos Interface

SM-Sercos

 SM-Ethernet

Ethernet option module supporting Ethernet/IP and Modbus with built in web server.

SM-Ethernet

SM-Profibus

Profibus DP slave option module

SM-Profibus

 SM-DeviceNET

DeviceNET option module

SM-DeviceNET

 SM-Interbus

Interbus interface option module

SM-Interbus

SM-CAN

User programmable CAN option module - Allows you to develop your own CAN protocols

SM-CAN

 Feedback

SM-Universal Encoder Plus

Combined encoder input and output interface supporting Incremental, SinCos, Hiperface, EnDAT and SSI encoders

SM-Universal Encoder Plus

SM-Encoder Output Plus

Incremental encoder output option module to enable connection with external motion controllers

NEW SM-Encoder Output Plus

SM-Encoder Plus

Incremental encoder input option module

SM-Encoder Plus

SM-Resolver

Resolver option module for robust feedback in demanding environments

SM-Resolver

SM-SLM

SLM option module for integration with SLM enabled motion controllers

SM-SLM

 I/O

SM-I/O 32

Extended digital I/O adding 32 bi-directional I/O points

NEW SM-I/O 32

SM-I/O Plus

Extended I/O interface to increase the number of I/O points on a drive

SM-I/O Plus

SM-I/O Lite

Extended I/O interface with reduced functionality

SM-I/O Lite

SM-I/O Timer

Extended I/O option module with real time clock

SM-I/O Timer

SM-I/O PELV

Namur standard I/O interface with high speed I/O

SM-I/O PELV

SM-I/O 120

120 volt I/O option module

SM-I/O 120

Remote I/O

Beckhoff I/O

Flexible I/O system for remote connectivity using Control Techniques CTNet Drive-to-drive network

Beckhoff I/O

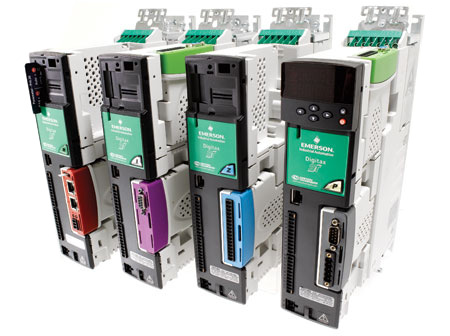

Digitax  ST Servo Drives Available Styles
