Unimotor hd - Pulse duty servo motor



6.3 lb-in  757.6 lb-in (2257 lb-in peak); 0.72 Nm 85 Nm (255.0 Nm peak)
230 V | 460 V

Unimotor hd is a high dynamic brushless AC servo motor range with frames from 055 mm to 190 mm, designed for operation with Digitax ST, Unidrive SP and Epsilon EP drives.

This high peak torque, low inertia motor range is designed for high dynamic applications requiring hard accelerations and decelerations including:

  • Flying shear

  • Pick and place

  • Cut-to-length

Unimotor hd motors are perfectly matched to Digitax HD, Unidrive M700 and Epsilon EP servo drives.

Features

Compact servo motor

  • Unimotor hd provides an exceptionally compact, low inertia solution for applications where very high torque is required during rapid acceleration and deceleration profiles.

High torque

  • The Unimotor hd torque profile is matched to Digitax ST servo drives, providing up to 300% peak overload for maximum dynamic performance.

Key Features

  • Unimotor hd is suitable for a wide range of industrial applications, due to its extensive features.
  • Torque range: 0.72Nm to 16Nm
  • High torque to inertia ratio for high dynamic performance
  • Compact but powerful
  • High energy dissipation brakes
  • IP65 conformance: sealed against water spray and dust when mounted and connected
  • Segmented stator design
  • World class performance
  • Supported by rigorous testing for performance and reliability
  • Winding to suit 400V and 200V
  • Rated speeds include 2000rpm, 3000rpm,4000rpm and 6000rpm
  • Larger shafts to increase torsional rigidity

 Torque performance

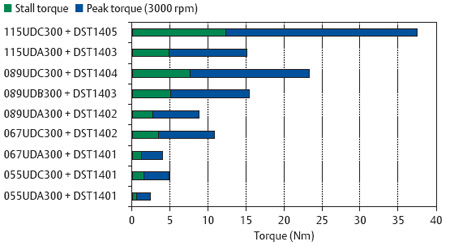

Unimotor hd Torque Performance


Specifications

Unimotor is suitable for a wide range of industrial applications, due to its extensive features.

  • Torque range: 0.72Nm to 18.8Nm
  • High torque to inertia ratio for high dynamic performance
  • Compact but powerful
  •  High energy dissipation brakes
  • IP65 conformance: sealed against water spray and dust when mounted and connected
  • Segmented stator design
  • World class performance
  • Supported by rigorous testing for performance and reliability
  • Winding to suit 400V and 220V
  • Rated speeds include 2000rpm, 3000rpm, 4000rpm and 6000rpm
  • Larger shafts to increase torsional rigidity

Conformance and standards

  • RoSH Compliant
  • CE certified
  • Certified BS EN ISO 9001:2000
  • Control Techniques two year plus warranty

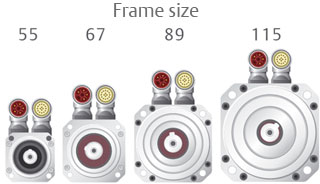

Unimotor hd Frame Sizes






Unimotor hd Frame Sizes



FRAME SIZES

55

67

89

11>

142

190

Rated Torque
(Nm)
0.72 - 1.65 1.45 - 3.70 3.20 - 8.00 10.20 - 18.80 25.0 - 38.0 22.0 - 85.0
Peak Torque
(Nm)
2.88 - 6.60 4.35 - 11.10 9.60 - 24.00 30.60 - 56.40 74.9 - 114.0 156.0 - 255.0



Options

Accuracy and resolution

Unimotor hd has a range of feedback options that offer different levels of accuracy and resolution to suit most applications:

  • Resolver: robust for extreme applications and conditions - low accuracy, medium resolution
  • Incremental encoder: high accuracy, medium resolution
  • Inductive Absolute: medium accuracy, medium resolution, single turn and multi-turn
  • Optical SinCos/Absolute: high accuracy, high resolution, single turn and multi-turn
  • Hiperface (SICK) and EnDAT (Heidenhain) protocols supported

Feedback

Accuracy and resolution to suit your application requirements

Choosing the right feedback device for your application is critical in getting optimum performance. Unimotor hd has a range of feedback options that offer different levels of accuracy and resolution to suit most applications:

  • Resolver: robust for extreme applications and conditions - low accuracy, medium resolution
  • Incremental encoder: high accuracy, medium resolution
  • Inductive Absolute: medium accuracy, medium resolution, single turn and multi-turn
  • Optical SinCos/Absolute: high accuracy, high resolution, single turn and multi-turn
  • Hiperface (SICK) and EnDAT (Heidenhain) protocols supported
